The native GUI toolkit for every language.
Azul is a standalone GUI library working on six platforms (desktop, mobile, web), seventeen programming languages, two rendering modes (CPU / GPU) and zero external dependencies.
v0.2.0
2026-09-16

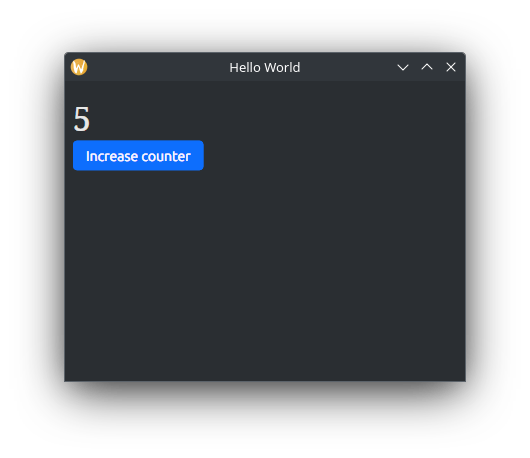

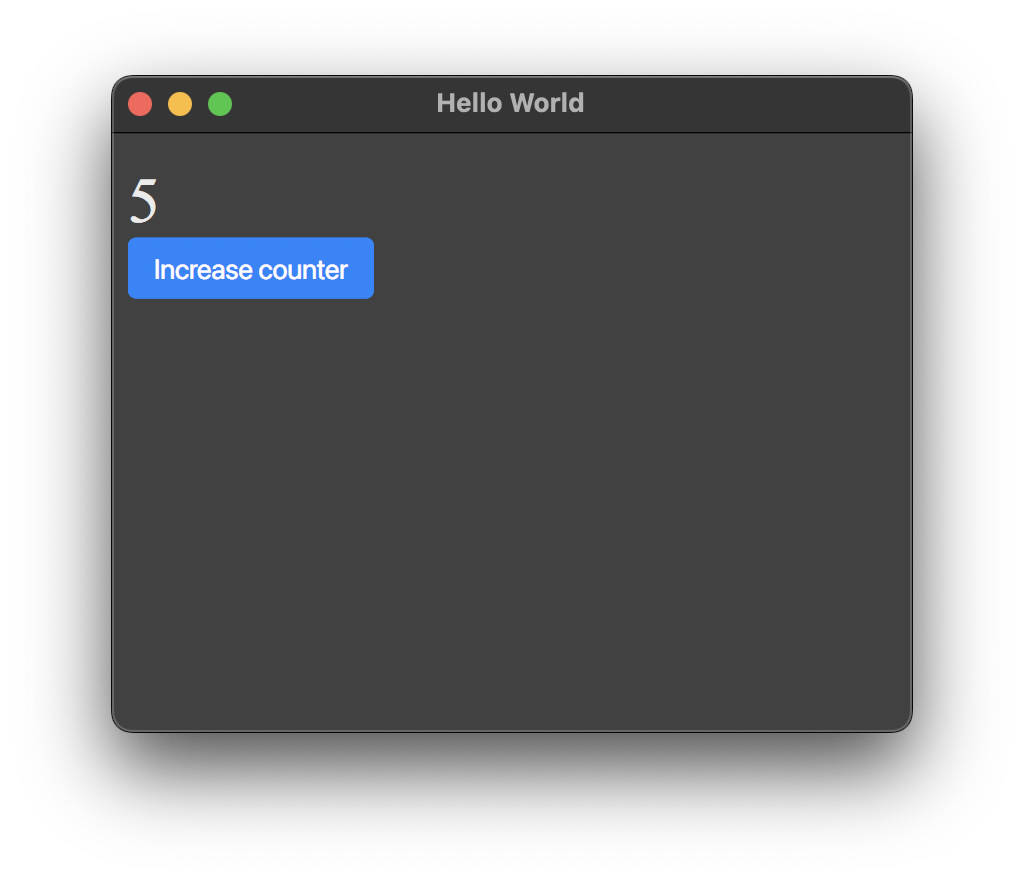

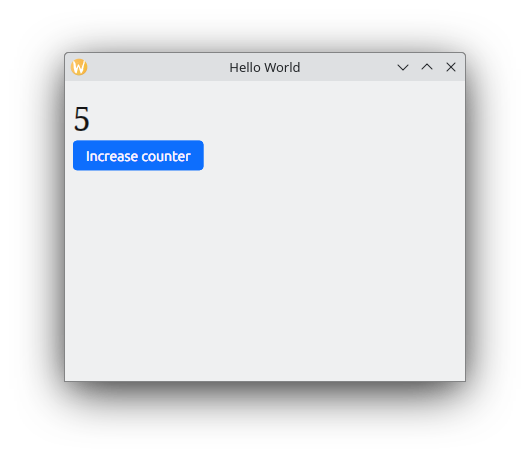

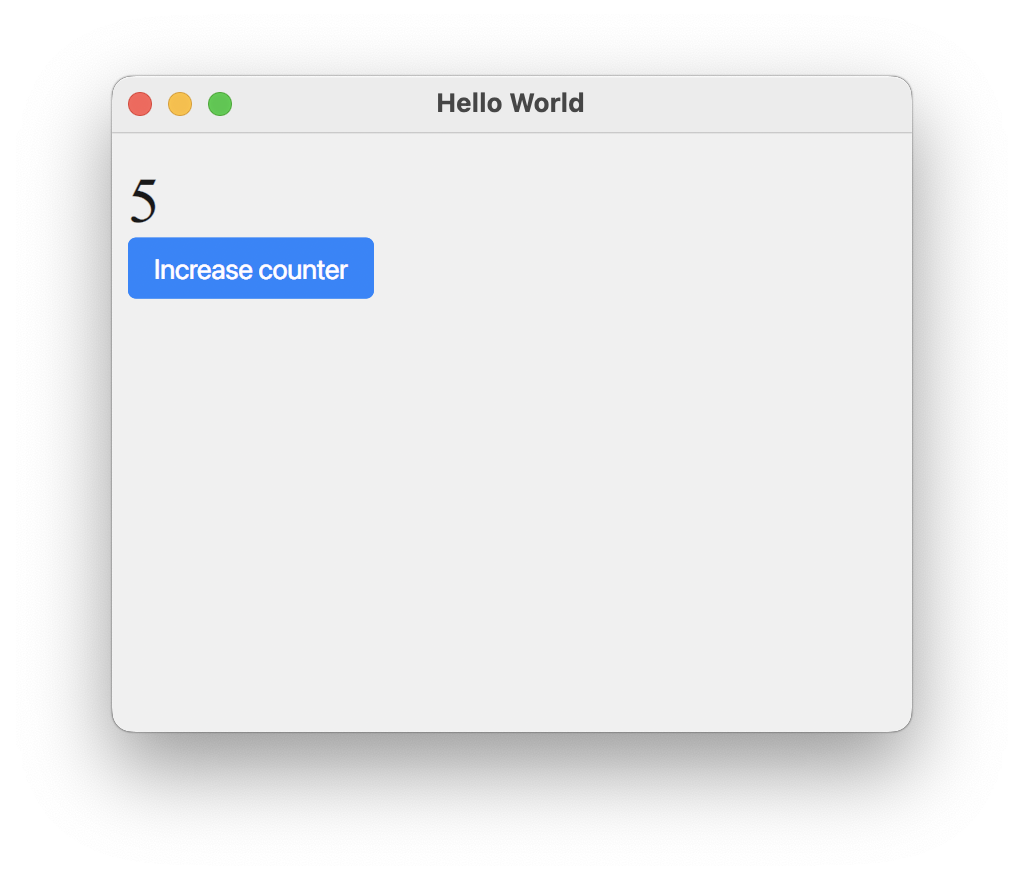

Hello, World.
Goodbye, JavaScript.
Your UI is a function of your data. Callbacks can be attached as simple function pointers with callback context, handing you small, unit-testable callback functions with a simple mental model
from azul import *
class DataModel:
def __init__(self, counter):
self.counter = counter
def layout(data, info):
label = (Dom.create_p_with_text(str(data.counter))
.with_css("font-size: 32px; margin: 0;"))
button = (Button.create("Increase counter")
.with_on_click(data, on_click)
.dom()
.with_css("flex-grow: 1;"))
return (Dom.create_body()
.with_child(label)
.with_child(button))
def on_click(data, info):
data.counter += 1
return Update.RefreshDom
if __name__ == "__main__":
model = DataModel(5)
window = WindowCreateOptions.create(layout)
app = App.create(model, AppConfig.create())
app.run(window)

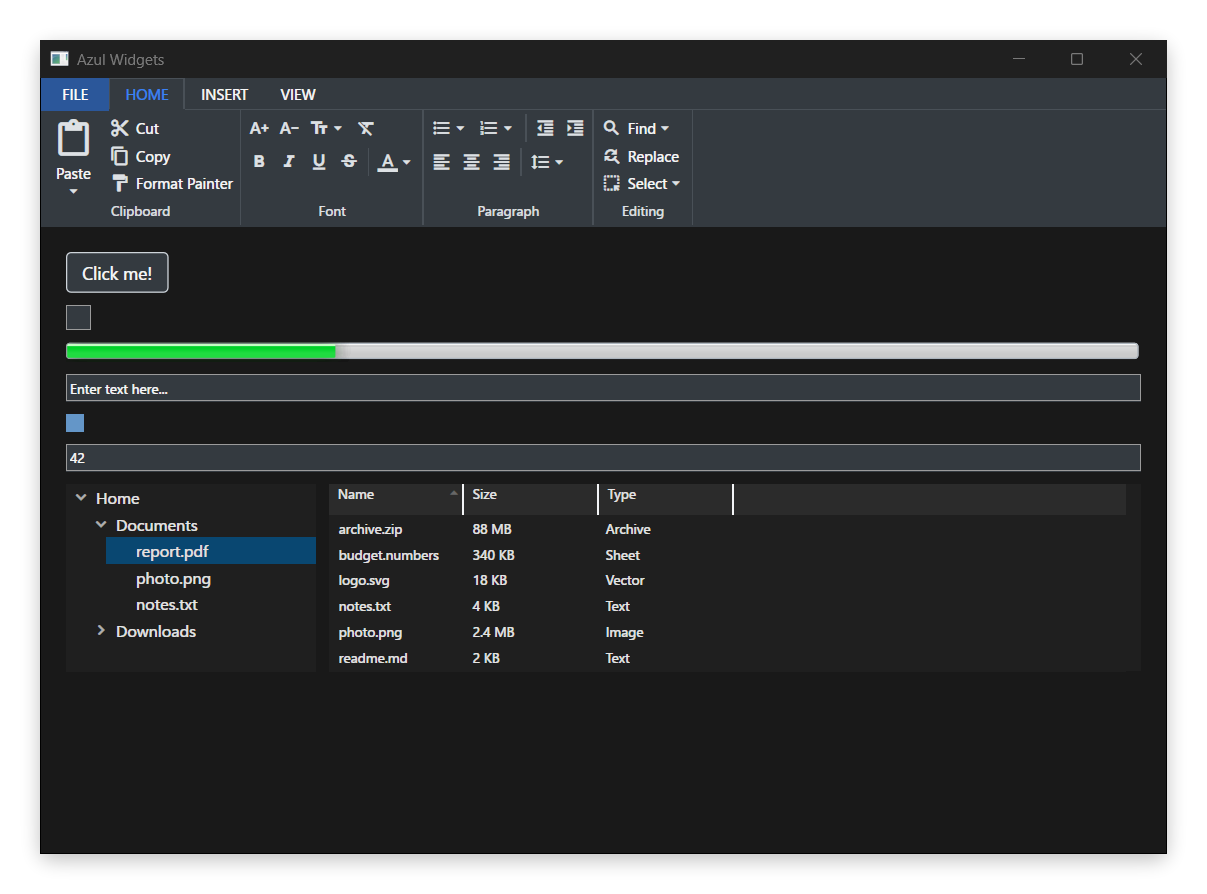

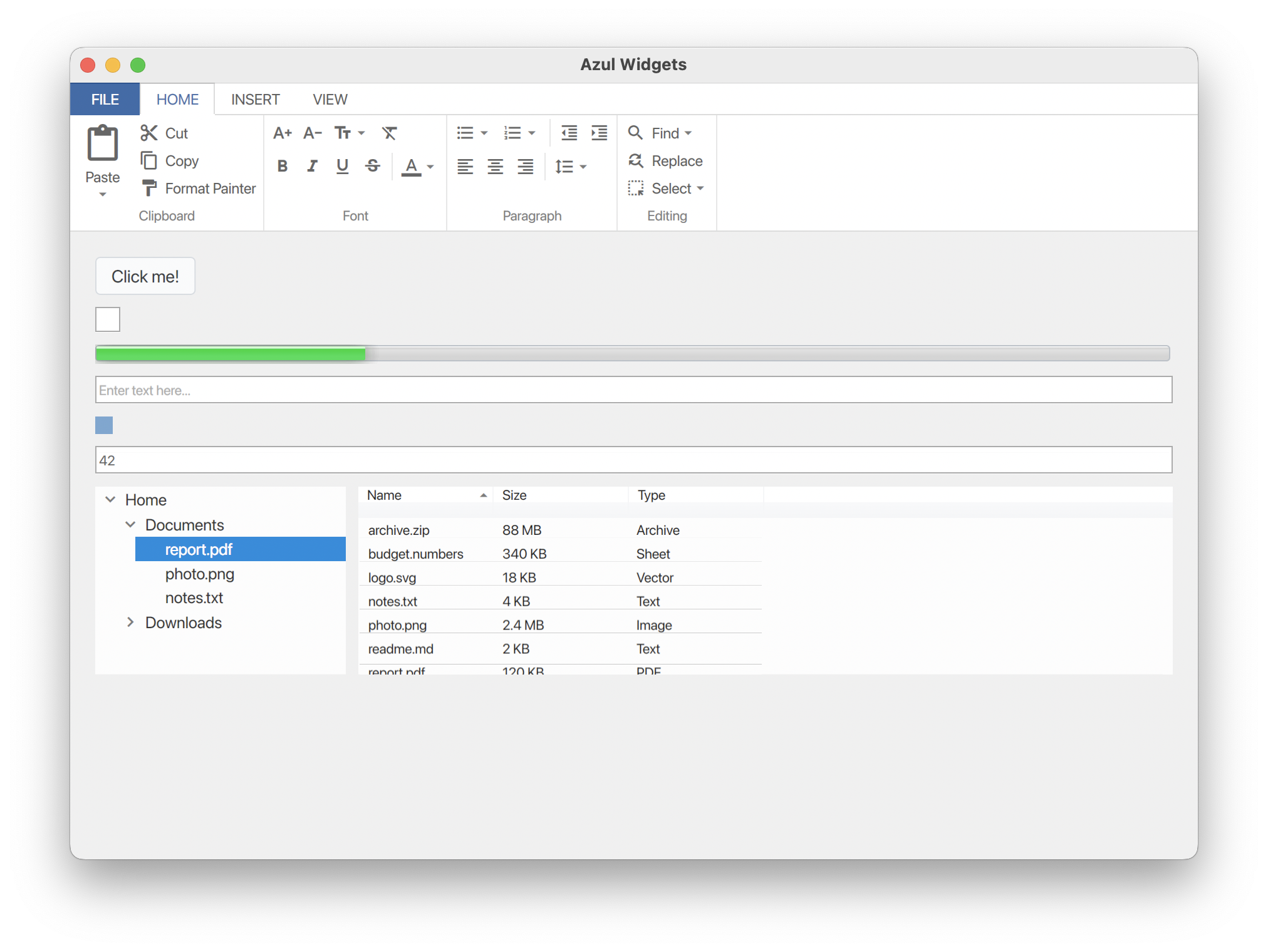

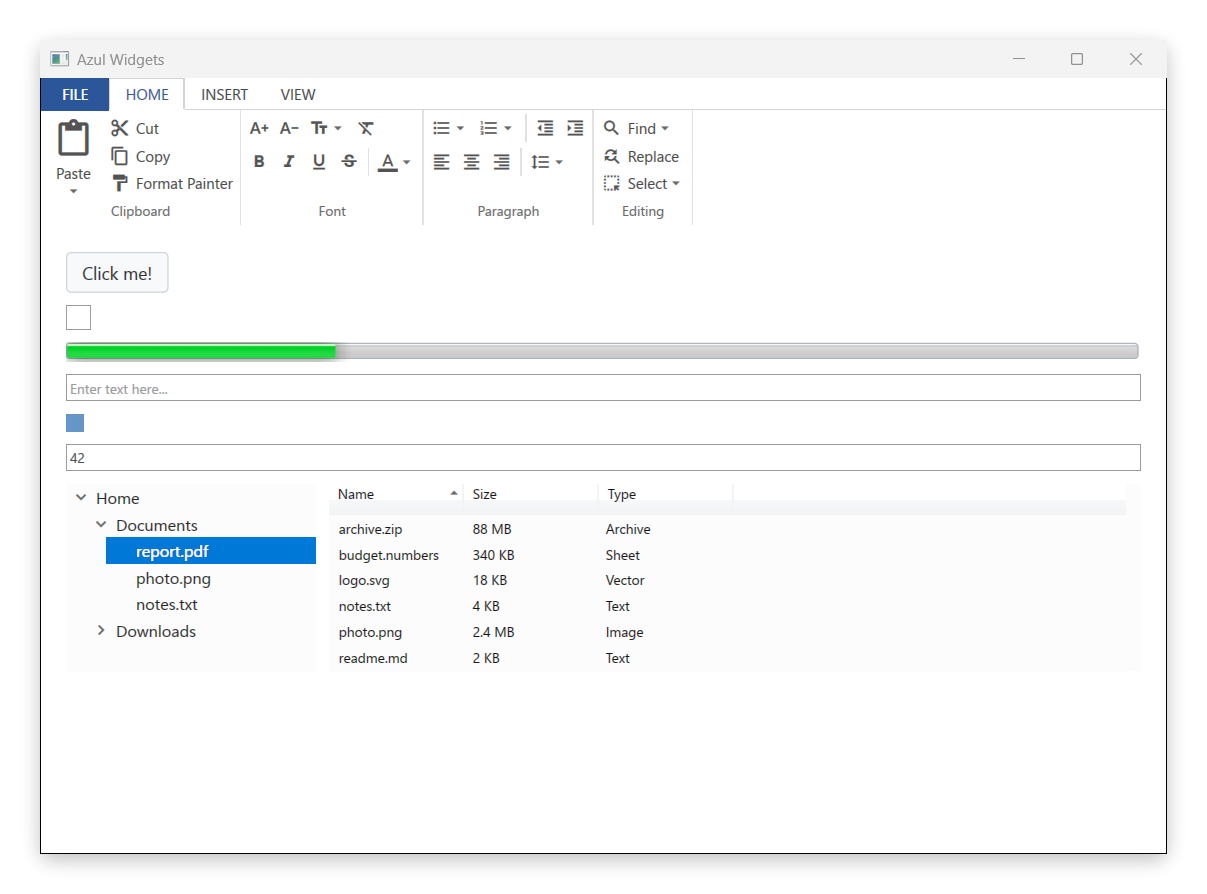

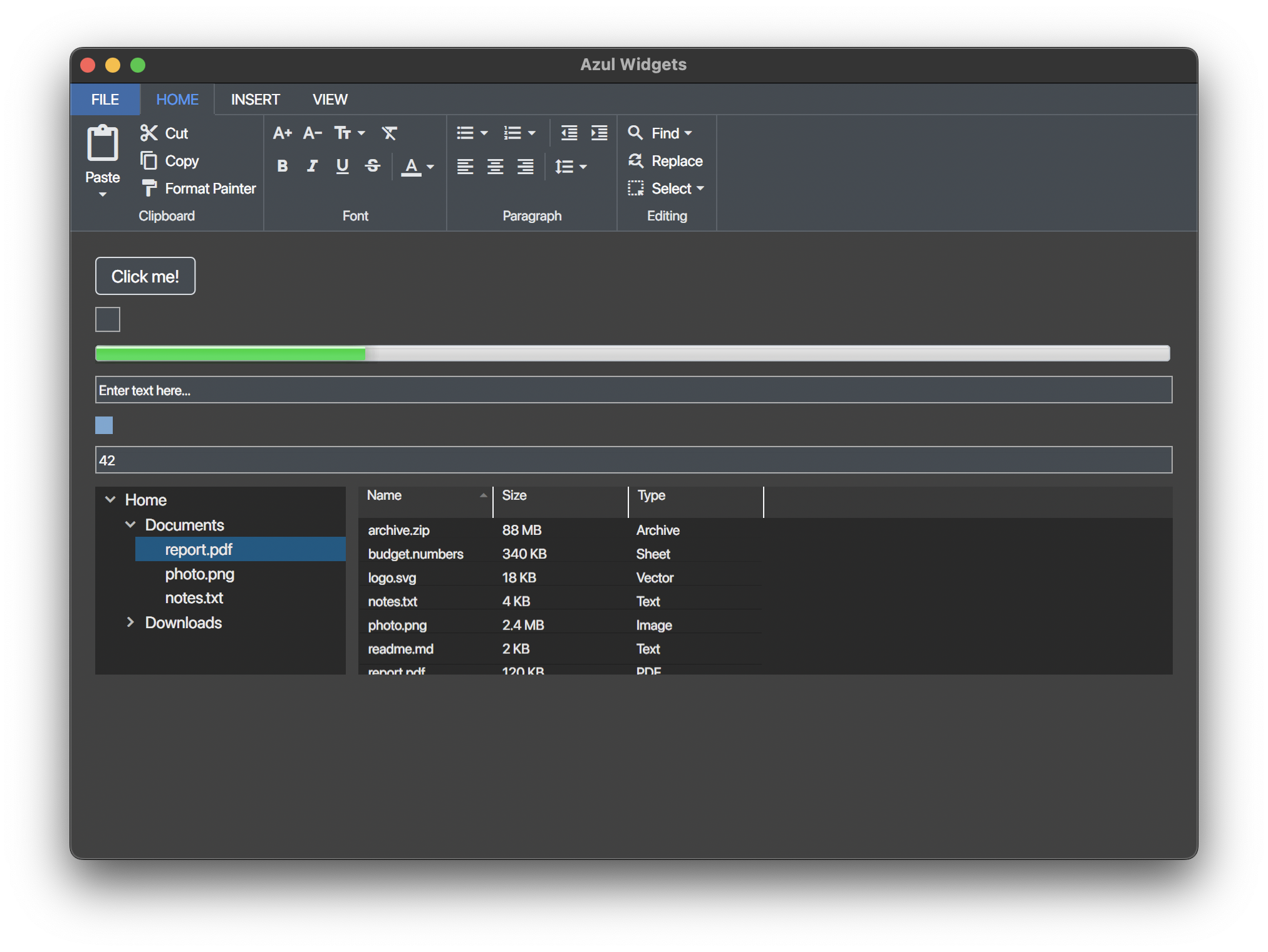

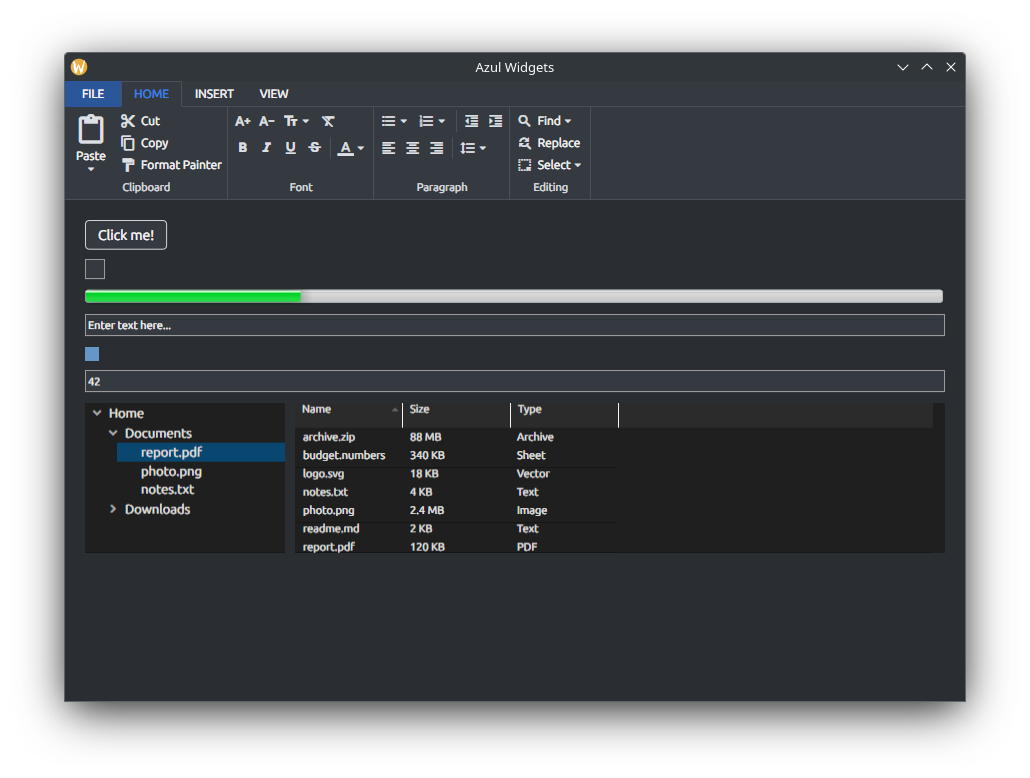

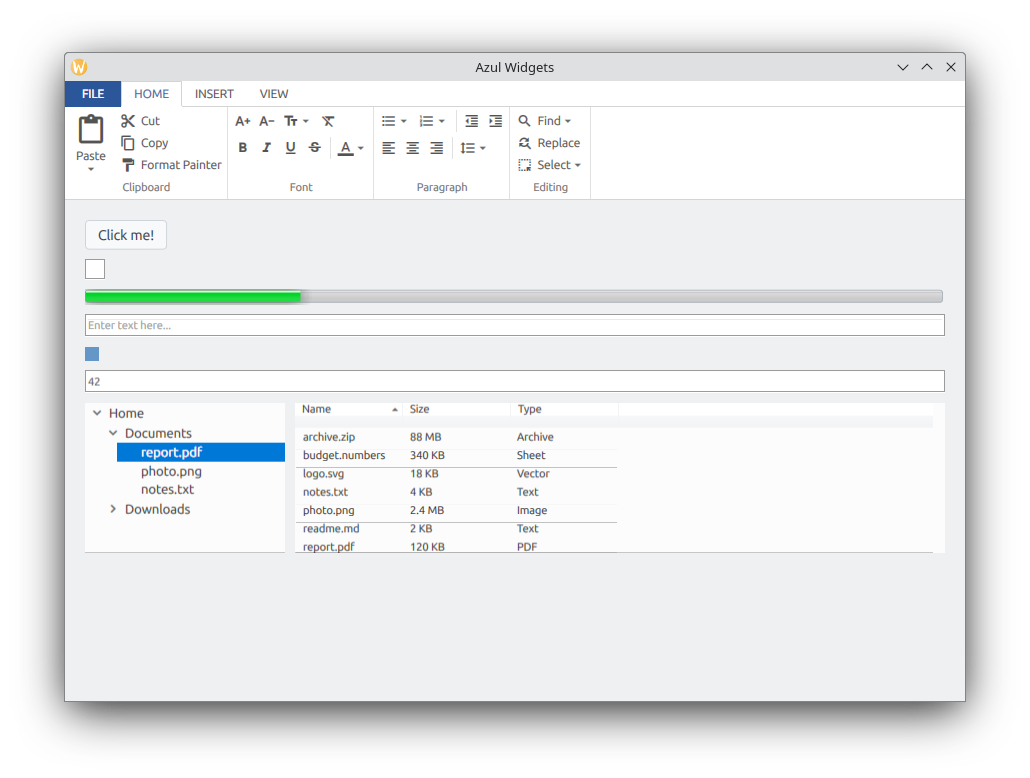

Built-in Widget
Library
Create complex interfaces with a library of ready-made components: Ribbons, input fields, toggles, checkboxes, menus... - while keeping full control over the style of your application with scoped inline CSS styles
from azul import *
class WidgetShowcase:
def __init__(self):
self.enable_padding = True
self.active_tab = 0
self.progress_value = 25.0
self.checkbox_checked = False
self.text_input = ""
def small(icon, label):
return RibbonItem.SmallButton(RibbonButton.create(icon, label))
def menu(icon, label):
return RibbonItem.SmallButton(RibbonButton.create(icon, label).with_arrow(RibbonArrow.Menu))
def large(icon, label, arrow):
return RibbonItem.LargeButton(RibbonButton.create(icon, label).with_arrow(arrow))
def stack(items, container):
for item in items:
container = container.with_item(item)
return container
def home_tab():
clipboard = (RibbonGroup.create("Clipboard")
.with_item(large("content_paste", "Paste", RibbonArrow.Split))
.with_item(RibbonItem.Column(stack([
small("content_cut", "Cut"),
small("content_copy", "Copy"),
small("format_paint", "Format Painter"),
], RibbonColumn.create()))))
font_top = RibbonItem.Row(stack([
small("text_increase", ""),
small("text_decrease", ""),
menu("text_fields", ""),
small("format_clear", ""),
], RibbonRow.create()))
font_bottom = RibbonItem.Row(stack([
small("format_bold", ""),
small("format_italic", ""),
small("format_underlined", ""),
small("strikethrough_s", ""),
RibbonItem.Separator(),
menu("format_color_text", ""),
], RibbonRow.create()))
font = RibbonGroup.create("Font").with_item(
RibbonItem.Column(stack([font_top, font_bottom], RibbonColumn.create())))
para_top = RibbonItem.Row(stack([
menu("format_list_bulleted", ""),
menu("format_list_numbered", ""),
RibbonItem.Separator(),
small("format_indent_decrease", ""),
small("format_indent_increase", ""),
], RibbonRow.create()))
para_bottom = RibbonItem.Row(stack([
small("format_align_left", ""),
small("format_align_center", ""),
small("format_align_right", ""),
RibbonItem.Separator(),
menu("format_line_spacing", ""),
], RibbonRow.create()))
paragraph = RibbonGroup.create("Paragraph").with_item(
RibbonItem.Column(stack([para_top, para_bottom], RibbonColumn.create())))
editing = RibbonGroup.create("Editing").with_item(RibbonItem.Column(stack([
menu("search", "Find"),
small("find_replace", "Replace"),
menu("highlight_alt", "Select"),
], RibbonColumn.create())))
return (RibbonTab.create("HOME")
.with_group(clipboard)
.with_group(font)
.with_group(paragraph)
.with_group(editing))
def ribbon(data):
return (Ribbon.create(RibbonTabVec.from_item(home_tab()))
.with_app_button(RibbonAppButton.create("FILE"))
.with_active_tab(data.active_tab)
.dom())
def layout(data, info):
theme = UiTheme.Flora if data.checkbox_checked else UiTheme.Flat
button = (Button.create("Click me!")
.with_theme(theme)
.with_on_click(data, on_button_click)
.dom()
.with_css("margin-bottom:10px;"))
checkbox = (CheckBox.create(data.checkbox_checked)
.with_theme(theme)
.with_on_toggle(data, on_checkbox_toggle)
.dom()
.with_css("margin-bottom:10px;"))
progress = (ProgressBar.create(data.progress_value)
.with_theme(theme)
.dom()
.with_css("margin-bottom:10px;"))
text_input = (TextInput.create()
.with_placeholder("Enter text here...")
.with_theme(theme)
.dom()
.with_css("margin-bottom:10px;"))
color_input = (ColorInput.create(ColorU.create(100, 150, 200, 255))
.dom()
.with_css("margin-bottom:10px;"))
number_input = (NumberInput.create(42.0)
.dom()
.with_css("margin-bottom:10px;"))
content = (Dom.create_div()
.with_css("flex-grow:1;overflow:auto;padding:20px;background:white;")
.with_child(button)
.with_child(checkbox)
.with_child(progress)
.with_child(text_input)
.with_child(color_input)
.with_child(number_input))
return (Dom.create_body()
.with_css("display:flex;flex-direction:column;height:100%;margin:0;padding:0;"
"font-family:sans-serif;")
.with_child(ribbon(data))
.with_child(content))
def on_button_click(data, info):
data.progress_value += 10.0
if data.progress_value > 100.0:
data.progress_value = 0.0
return Update.RefreshDom
def on_checkbox_toggle(data, info, state):
data.checkbox_checked = state.checked
return Update.RefreshDom
model = WidgetShowcase()
window = WindowCreateOptions.create(layout)
app = App.create(model, AppConfig.create())
app.run(window)

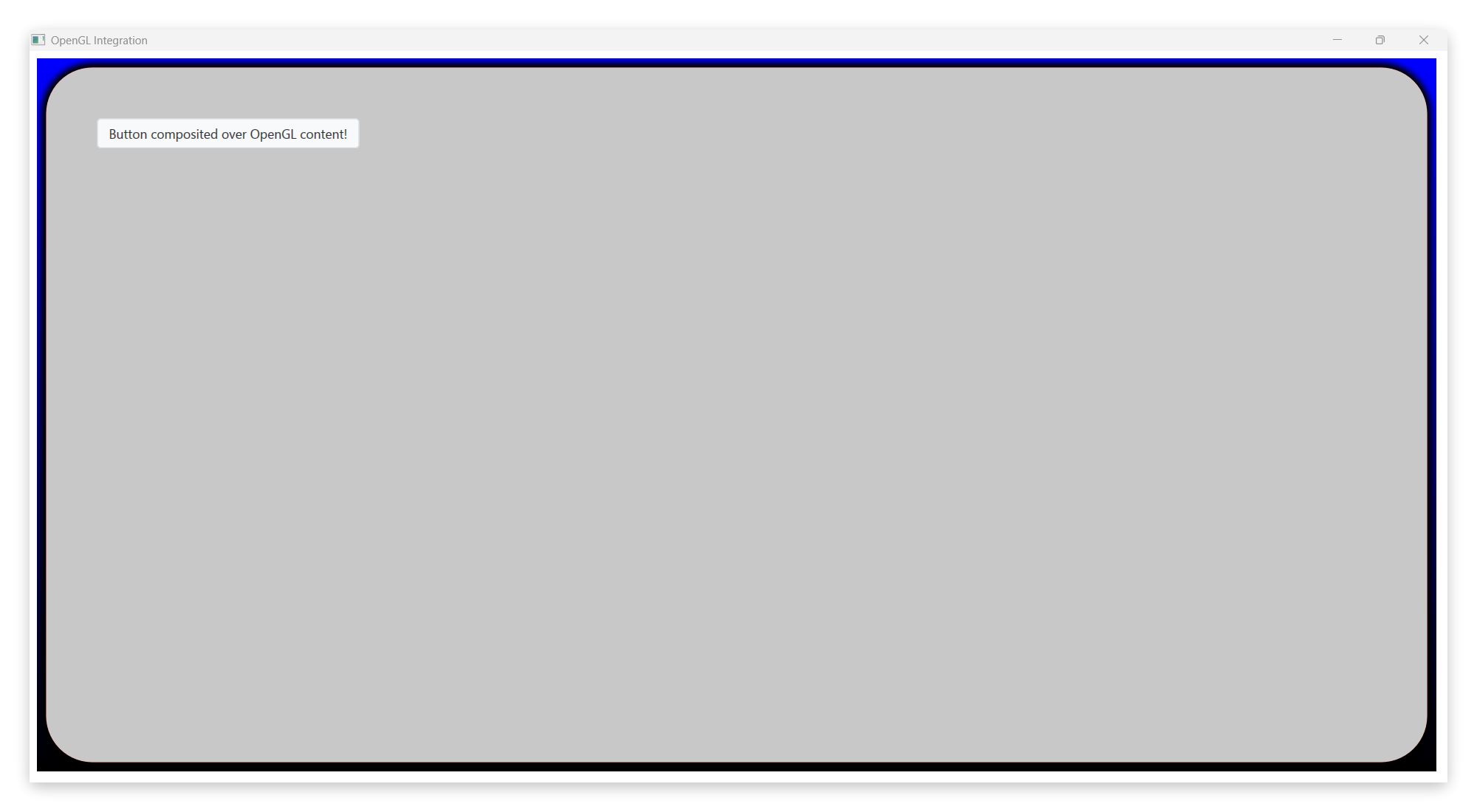

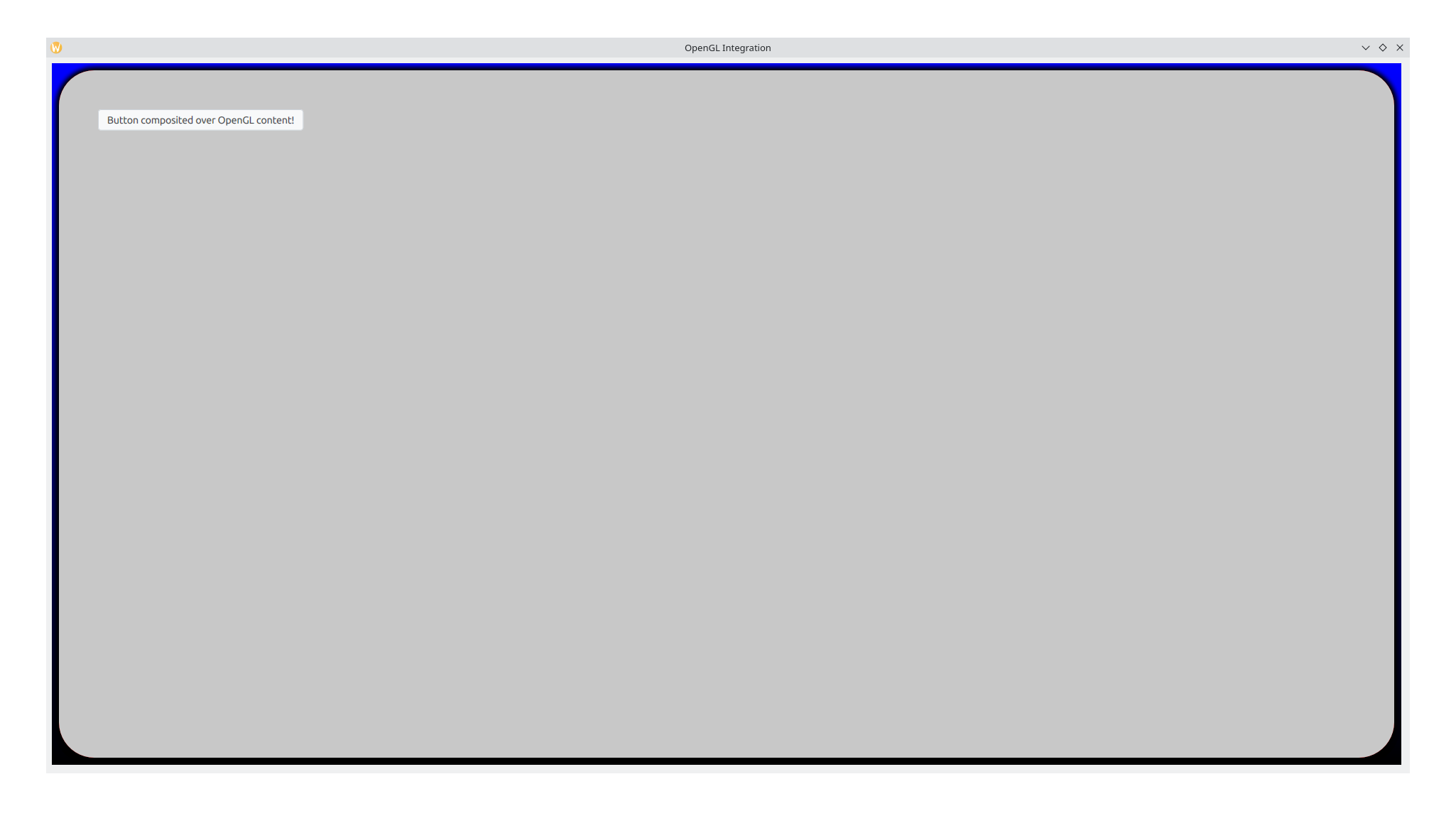

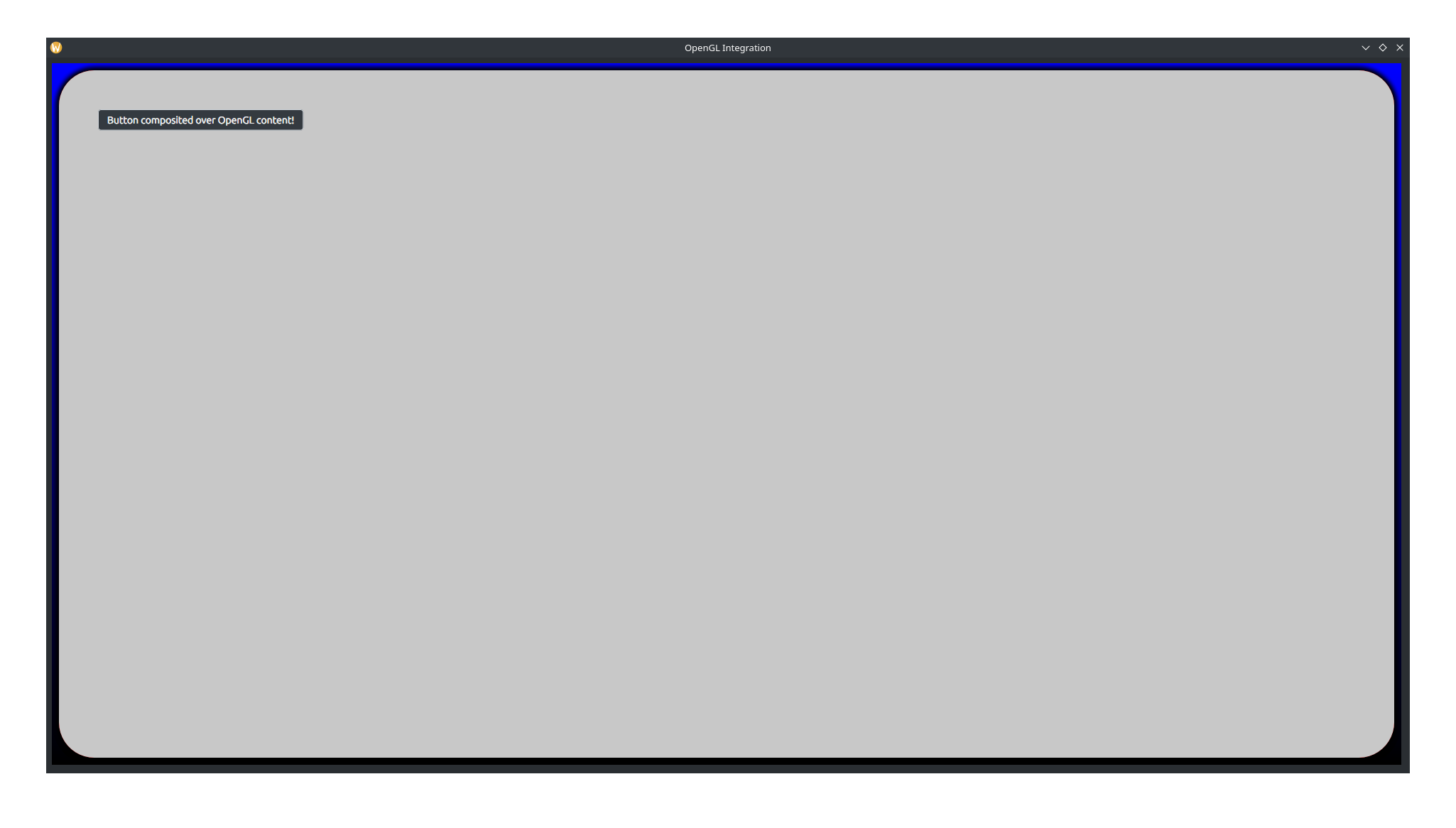

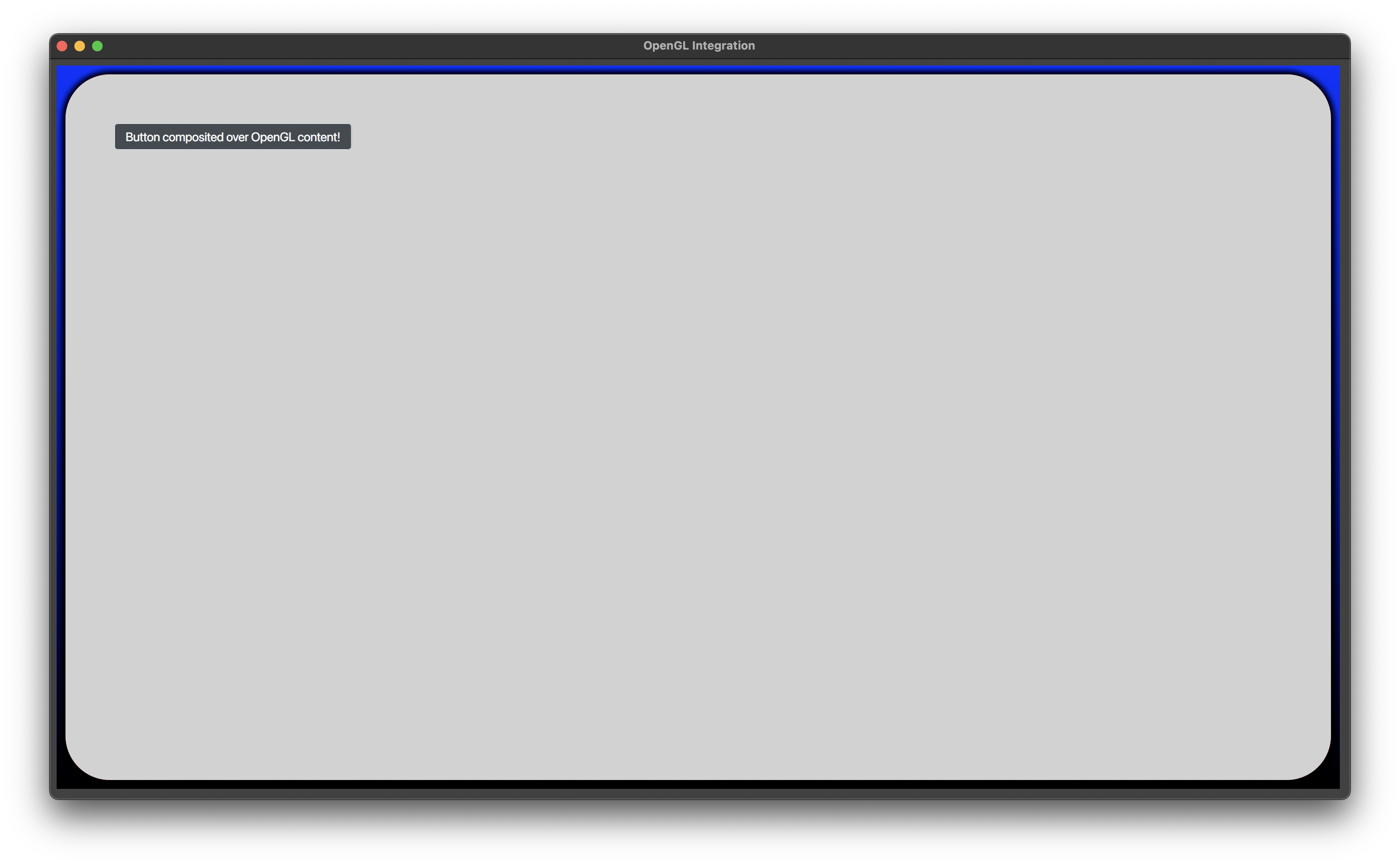

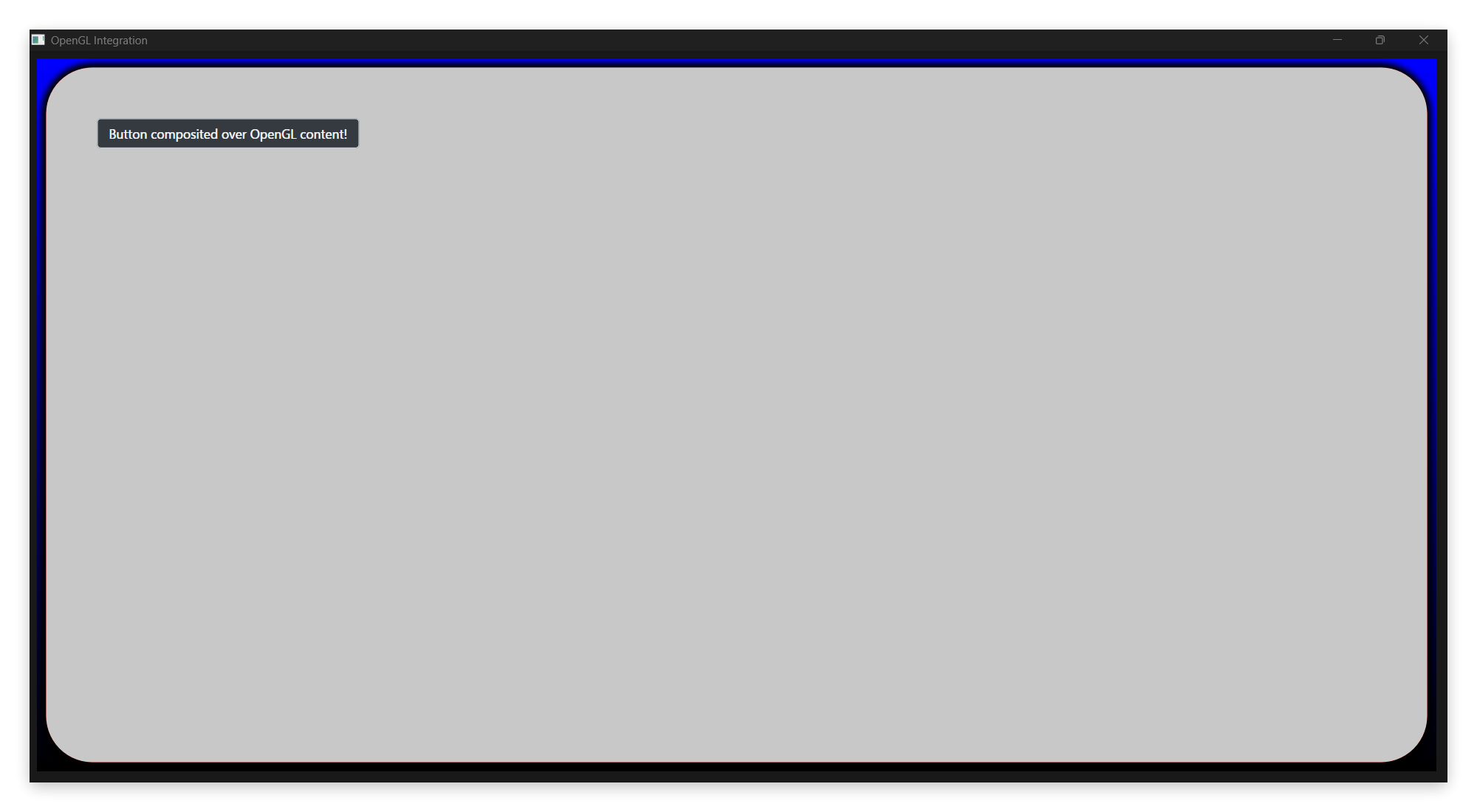

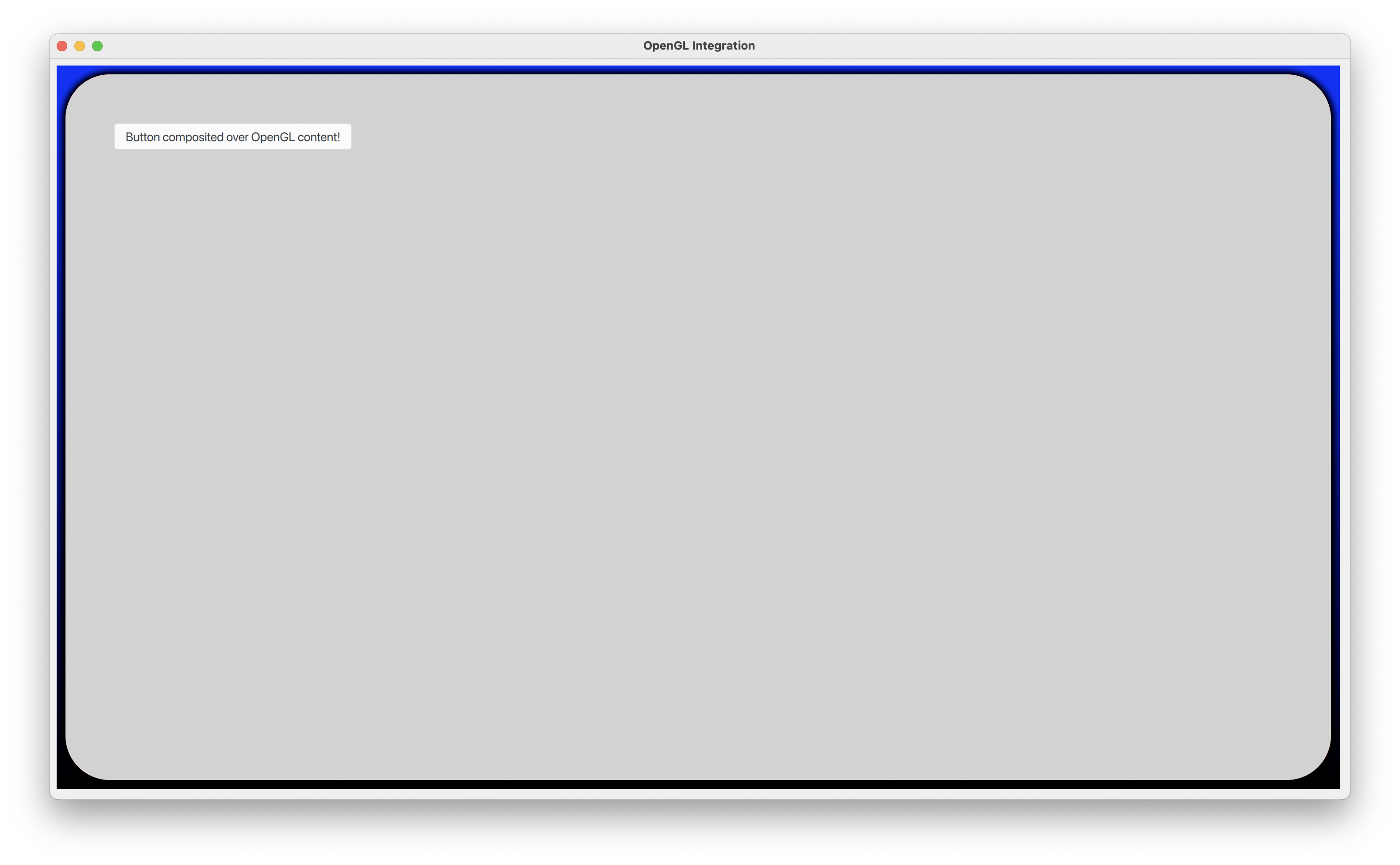

OpenGL
Integration
If running in GPU mode, you can embed OpenGL textures directly composited into your UI. Azul includes helpers for tesselation, creating texture masks as well as keeping heavy resources loaded in between layout() calls, so you don't recreate the world on every call
from azul import *
CLICK = EventFilter.Hover(HoverEventFilter.MouseUp)
class OpenGlState:
def __init__(self):
self.rotation_deg = 0.0
self.step_deg = 15.0
def button(text, data, callback):
return (Dom.create_div()
.with_css("padding:6px 14px;margin-right:8px;background:#2d3f5e;color:white;"
"border:1px solid #4a6a9e;font-size:12px;cursor:pointer;")
.with_child(Dom.create_p_with_text(text))
.with_callback(CLICK, data, callback))
def on_rotate(data, info):
data.rotation_deg = (data.rotation_deg + data.step_deg) % 360.0
return Update.RefreshDom
def on_faster(data, info):
data.step_deg = min(90.0, data.step_deg + 5.0)
return Update.RefreshDom
def on_slower(data, info):
data.step_deg = max(5.0, data.step_deg - 5.0)
return Update.RefreshDom
def layout(data, info):
title = (Dom.create_div()
.with_css("color:white;font-size:22px;margin-bottom:16px;")
.with_child(Dom.create_p_with_text(
"OpenGL Integration Demo")))
quad = (Dom.create_div()
.with_css("width:160px;height:160px;background:#39c0ed;border-radius:12px;"
"box-shadow:0px 0px 24px rgba(0,0,0,0.6);"
"transform:rotate(%.0fdeg);" % data.rotation_deg))
stage = (Dom.create_div()
.with_css("flex-grow:1;min-height:280px;border-radius:10px;background:#222222;"
"display:flex;align-items:center;justify-content:center;"
"margin-bottom:16px;")
.with_child(quad))
controls = (Dom.create_div()
.with_css("display:flex;flex-direction:row;align-items:center;")
.with_child(button("Rotate", data, on_rotate))
.with_child(button("Faster", data, on_faster))
.with_child(button("Slower", data, on_slower))
.with_child(Dom.create_div()
.with_css("color:#9fb0c4;font-size:12px;")
.with_child(Dom.create_p_with_text(
"%.0f deg step %.0f deg" % (data.rotation_deg, data.step_deg)))))
return (Dom.create_body()
.with_css("display:flex;flex-direction:column;height:100%;padding:20px;"
"background:#16213e;font-family:sans-serif;")
.with_child(title)
.with_child(stage)
.with_child(controls))
state = OpenGlState()
window = WindowCreateOptions.create(layout)
app = App.create(state, AppConfig.create())
app.run(window)

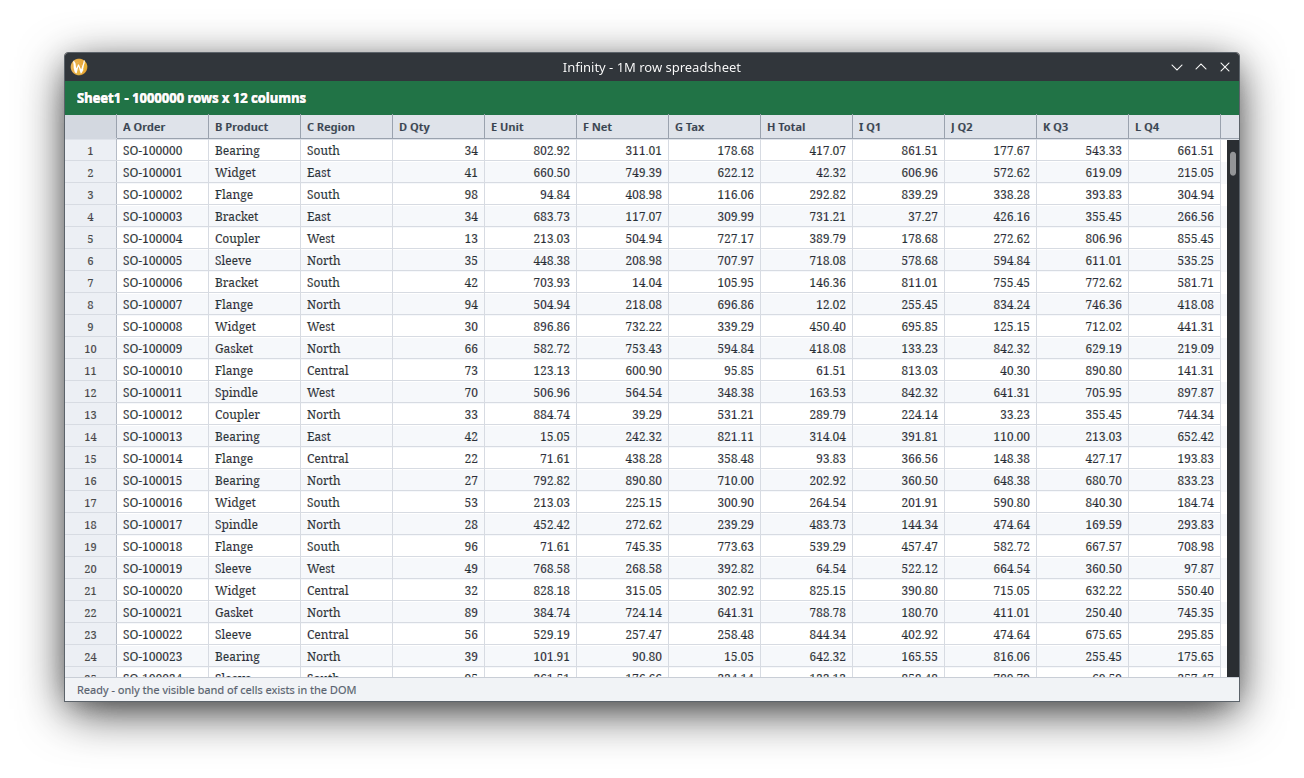

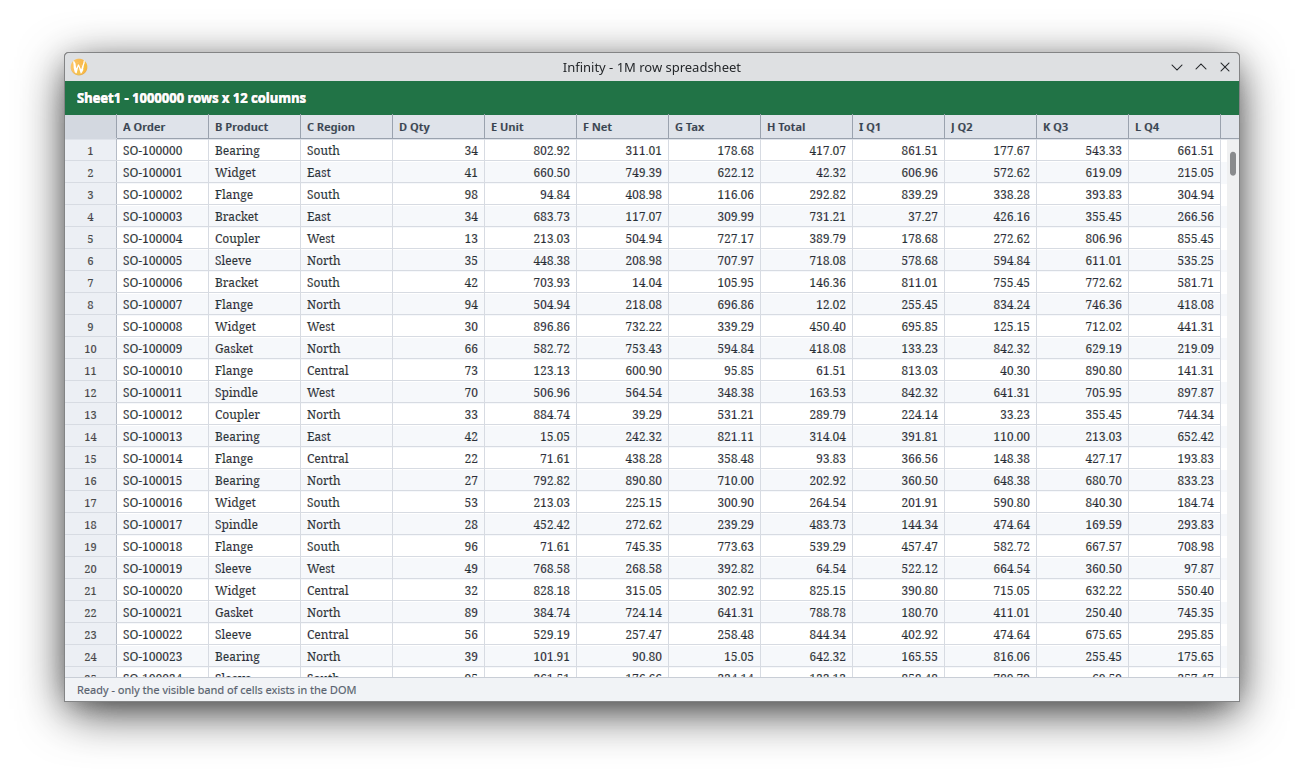

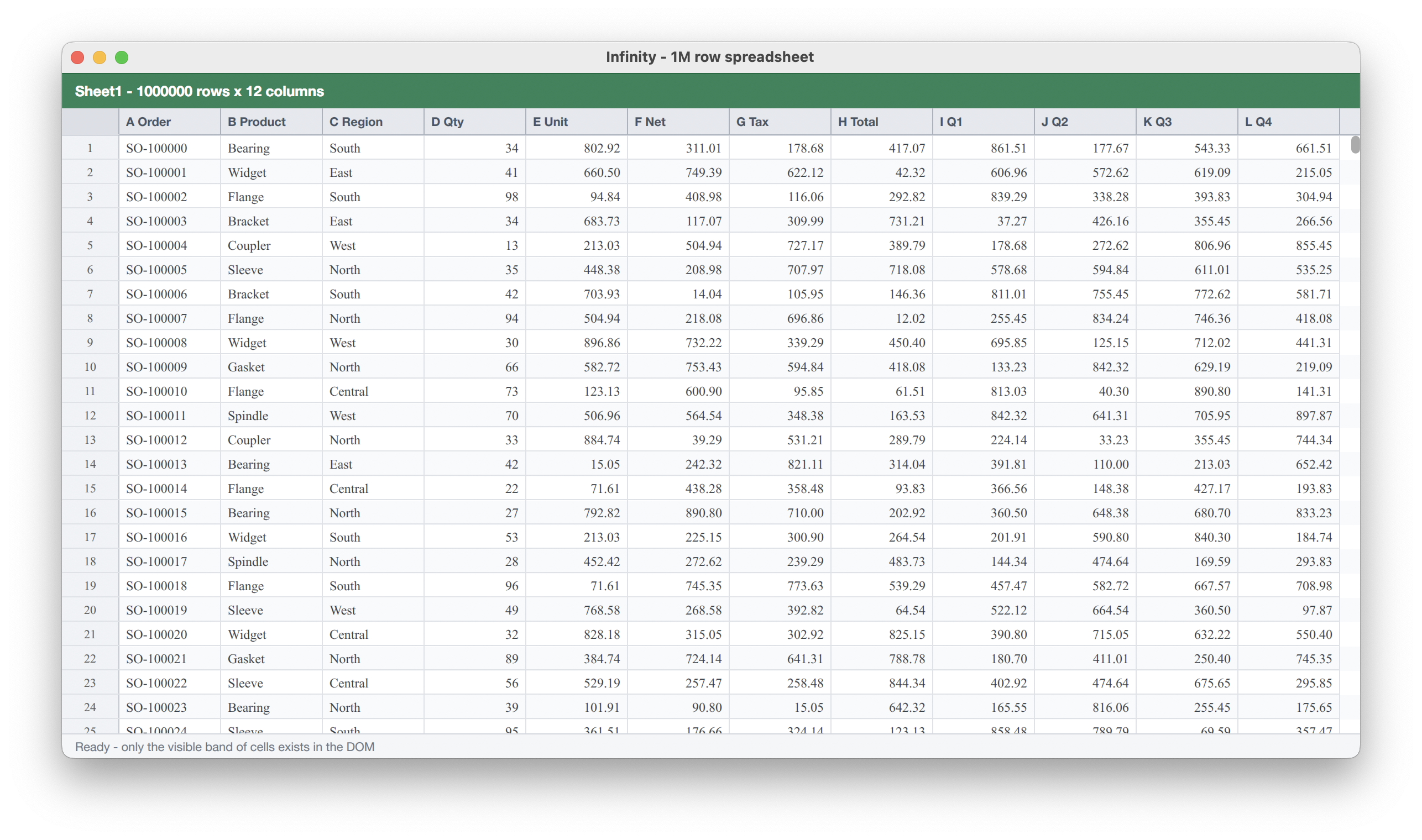

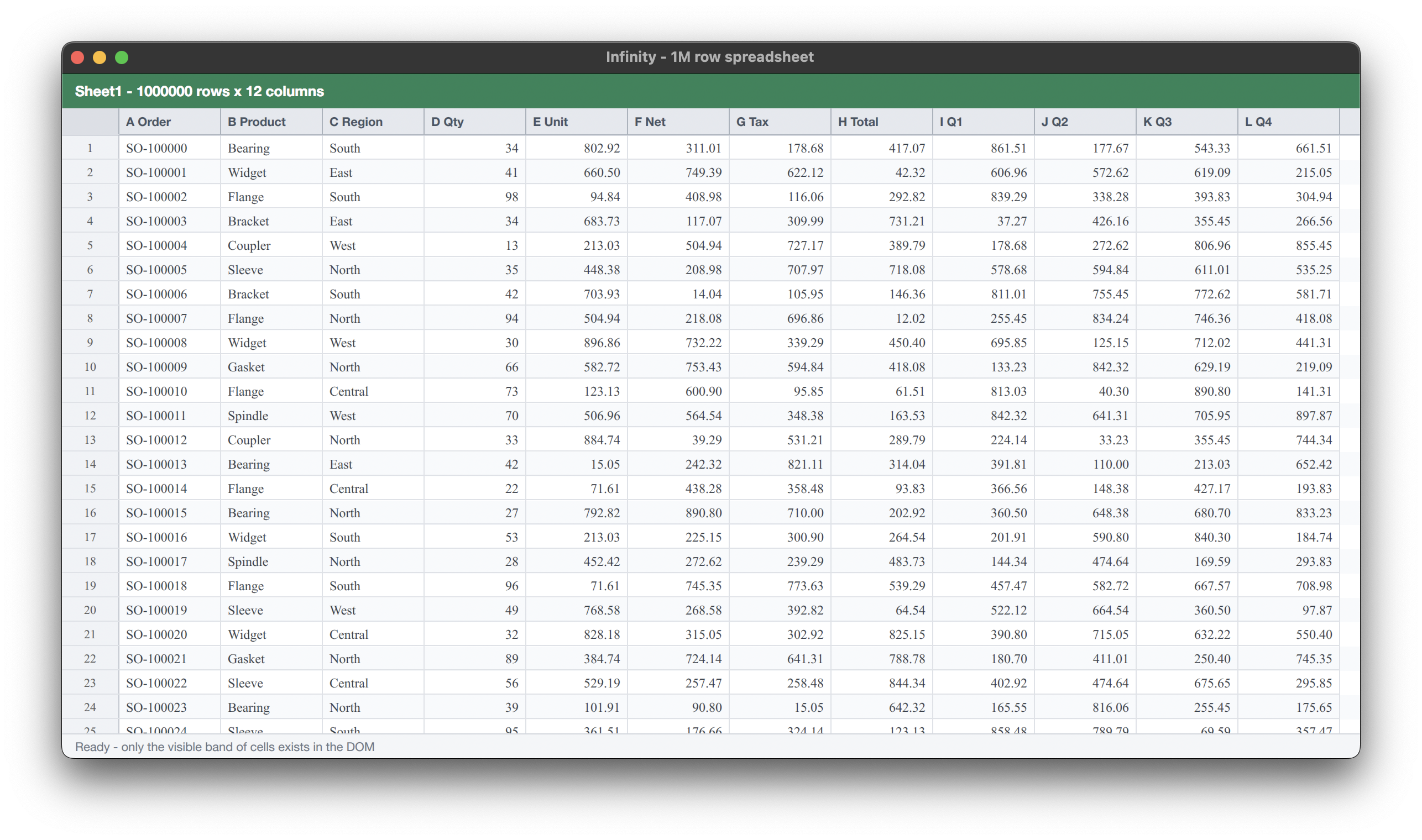

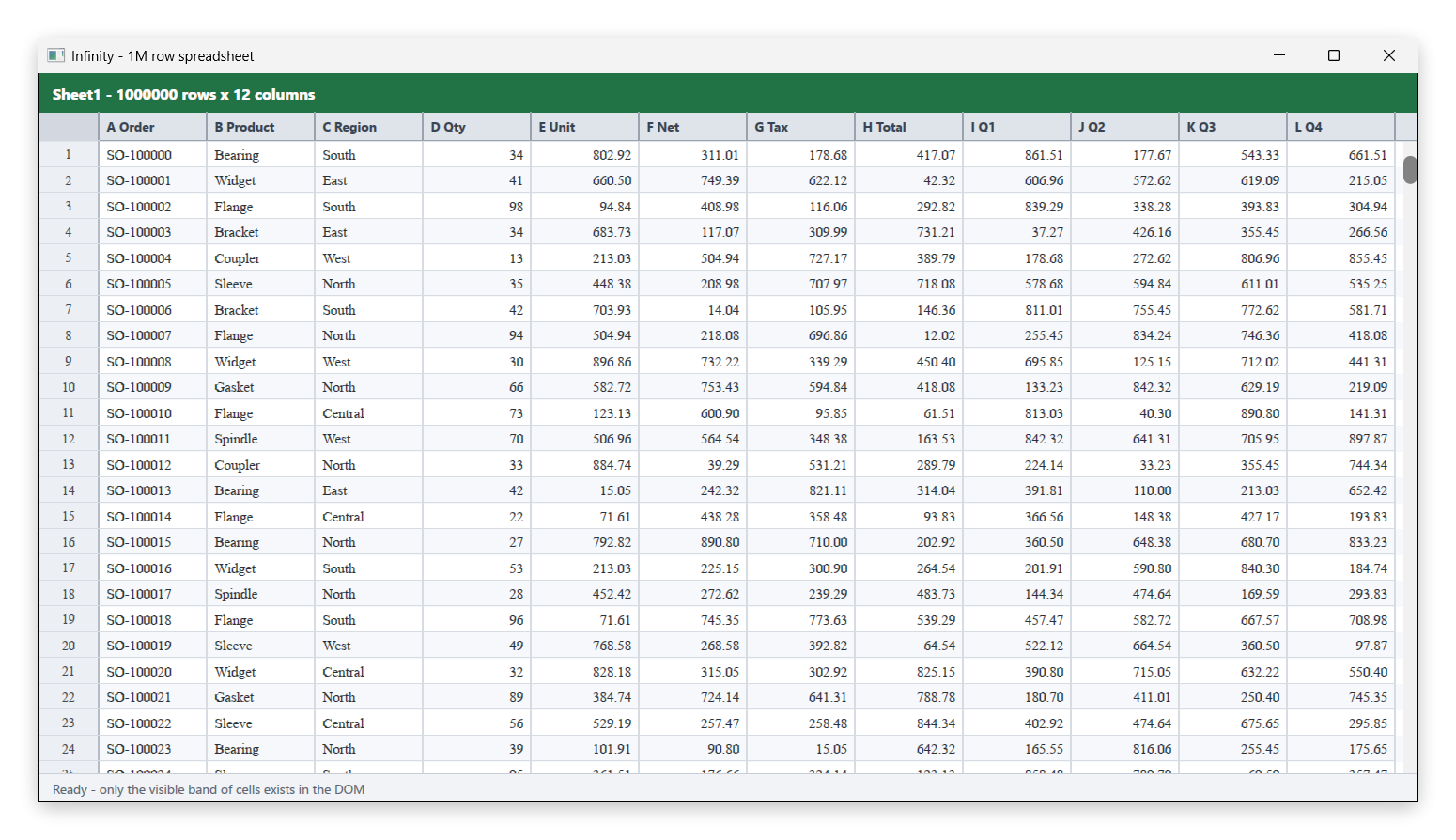

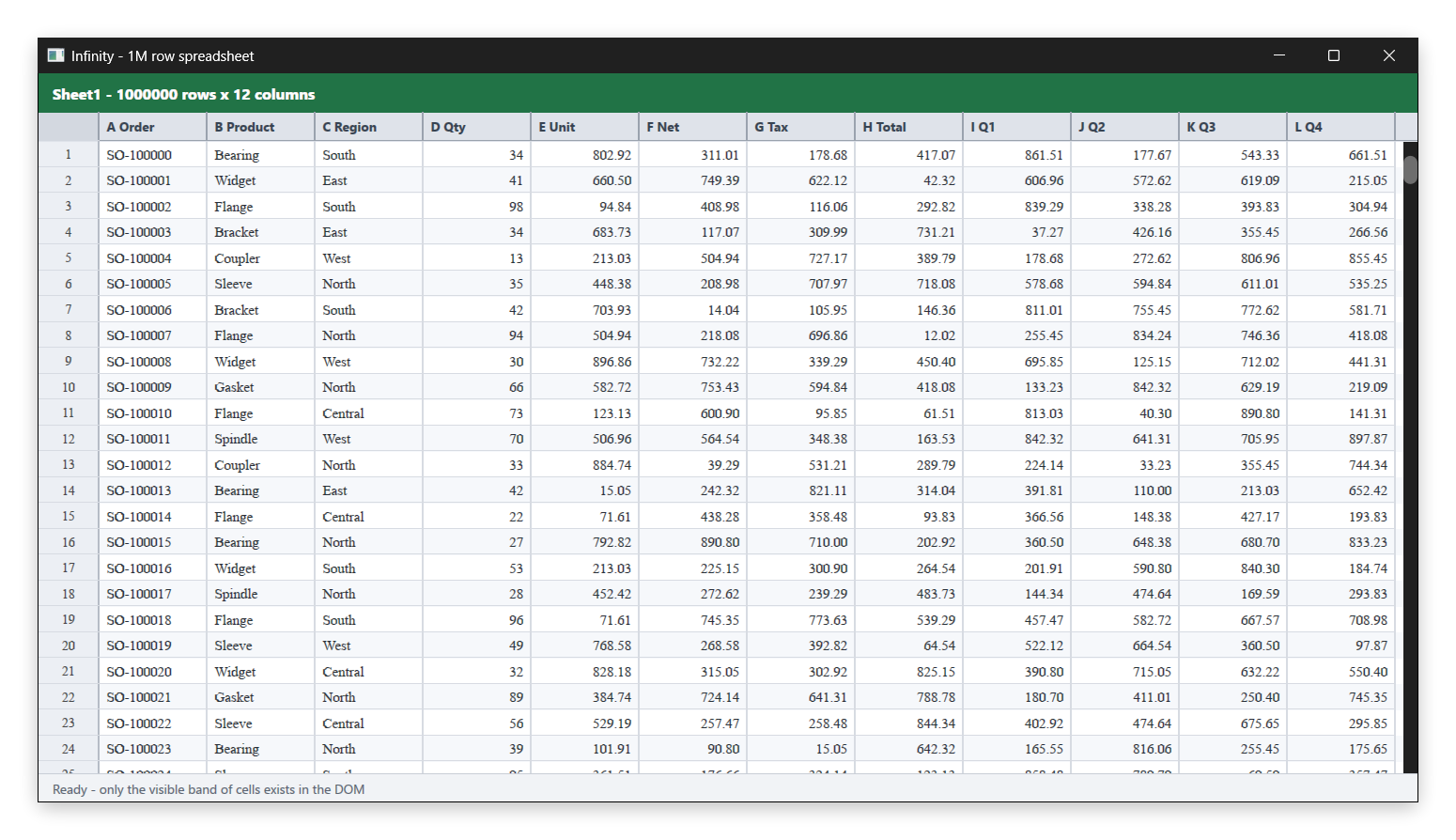

Infinite
Scrolling
Azul has built-in VirtualView DOM nodes and content-measuring functions to help you virtualize
large lists or datasets - so the DOM never contains more than it needs to.
from azul import *
TOTAL_ROWS = 1000000
ROW_HEIGHT = 22.0
VISIBLE_ROWS = 60
COL_LABELS = ["A", "B", "C", "D", "E", "F", "G", "H", "I", "J", "K", "L"]
COL_TITLES = ["Order", "Product", "Region", "Qty", "Unit", "Net",
"Tax", "Total", "Q1", "Q2", "Q3", "Q4"]
PRODUCTS = ["Widget", "Gasket", "Flange", "Bearing",
"Bracket", "Spindle", "Coupler", "Sleeve"]
REGIONS = ["North", "South", "East", "West", "Central"]
COL_WIDTH = 92
ROW_HEAD_WIDTH = 52
SCROLL = EventFilter.Hover(HoverEventFilter.Scroll)
CLICK = EventFilter.Hover(HoverEventFilter.MouseUp)
PAGE = 25
class SheetState:
def __init__(self):
self.total_rows = TOTAL_ROWS
self.first_row = 0
def hash2(row, col):
h = (row * 2654435761 ^ col * 40503) & 0xFFFFFFFF
h ^= h >> 13
h = (h * 1274126177) & 0xFFFFFFFF
return h ^ (h >> 16)
def cell_text(row, col):
h = hash2(row, col)
if col == 0:
return "SO-%06d" % (100000 + row)
if col == 1:
return PRODUCTS[h % len(PRODUCTS)]
if col == 2:
return REGIONS[h % len(REGIONS)]
if col == 3:
return str(h % 90 + 10)
return "%d.%02d" % (h % 900 + 10, h % 100)
def cell(text, css):
return (Dom.create_div()
.with_css(css)
.with_child(Dom.create_p_with_text(text)))
def column_header():
header = (Dom.create_div()
.with_css("display:flex;flex-direction:row;background:#dfe3ea;"
"border-bottom:1px solid #9aa2ae;"))
header = header.with_child(cell("", (
"width:%dpx;min-width:%dpx;height:24px;line-height:24px;"
"border-right:1px solid #9aa2ae;background:#d3d8e0;" % (ROW_HEAD_WIDTH, ROW_HEAD_WIDTH))))
for label, title in zip(COL_LABELS, COL_TITLES):
header = header.with_child(cell("%s %s" % (label, title), (
"width:%dpx;min-width:%dpx;height:24px;line-height:24px;padding-left:6px;"
"font-size:11px;font-weight:bold;color:#33404f;overflow:hidden;"
"border-right:1px solid #9aa2ae;" % (COL_WIDTH, COL_WIDTH))))
return header
def sheet_rows(data):
grid = Dom.create_div()
end = min(data.first_row + VISIBLE_ROWS, data.total_rows)
for row_idx in range(data.first_row, end):
band = "#ffffff" if row_idx % 2 == 0 else "#f6f8fb"
row = Dom.create_div().with_css(
"display:flex;flex-direction:row;height:%dpx;background:%s;" % (ROW_HEIGHT, band))
row = row.with_child(cell(str(row_idx + 1), (
"width:%dpx;min-width:%dpx;height:%dpx;line-height:%dpx;text-align:center;"
"font-size:11px;color:#444444;background:#eceff4;"
"border-right:1px solid #b6bcc6;border-bottom:1px solid #d7dbe2;"
% (ROW_HEAD_WIDTH, ROW_HEAD_WIDTH, ROW_HEIGHT, ROW_HEIGHT))))
for col in range(len(COL_LABELS)):
align = "right" if col >= 3 else "left"
row = row.with_child(cell(cell_text(row_idx, col), (
"width:%dpx;min-width:%dpx;height:%dpx;line-height:%dpx;padding-left:6px;"
"padding-right:6px;font-size:12px;color:#1f2933;text-align:%s;overflow:hidden;"
"border-right:1px solid #d7dbe2;border-bottom:1px solid #d7dbe2;"
% (COL_WIDTH, COL_WIDTH, ROW_HEIGHT, ROW_HEIGHT, align))))
grid = grid.with_child(row)
return grid
def scroll_by(data, rows):
new_first = max(0, min(data.total_rows - VISIBLE_ROWS, data.first_row + rows))
if new_first == data.first_row:
return Update.DoNothing
data.first_row = new_first
return Update.RefreshDom
def on_scroll(data, info):
return scroll_by(data, PAGE)
def on_page_down(data, info):
return scroll_by(data, PAGE)
def on_page_up(data, info):
return scroll_by(data, -PAGE)
def pager_button(text, data, callback):
return (Dom.create_div()
.with_css("padding:2px 10px;margin-right:6px;background:#ffffff;color:#33404f;"
"border:1px solid #b6bcc6;font-size:11px;cursor:pointer;")
.with_child(Dom.create_p_with_text(text))
.with_callback(CLICK, data, callback))
def layout(data, info):
title = (Dom.create_div()
.with_css("padding:8px 12px;background:#217346;color:white;"
"font-size:13px;font-weight:bold;")
.with_child(Dom.create_p_with_text(
"Sheet1 - %d rows x %d columns" % (data.total_rows, len(COL_LABELS)))))
viewport = (Dom.create_div()
.with_css("flex-grow:1;overflow-y:auto;overflow-x:hidden;background:#ffffff;")
.with_callback(SCROLL, data, on_scroll)
.with_child(sheet_rows(data)))
status = (Dom.create_div()
.with_css("display:flex;flex-direction:row;align-items:center;padding:4px 12px;"
"background:#f1f3f6;border-top:1px solid #c9ced6;color:#55606e;"
"font-size:11px;")
.with_child(pager_button("Prev", data, on_page_up))
.with_child(pager_button("Next", data, on_page_down))
.with_child(Dom.create_p_with_text(
"rows %d - %d of %d" % (data.first_row + 1,
data.first_row + VISIBLE_ROWS,
data.total_rows))))
return (Dom.create_body()
.with_css("display:flex;flex-direction:column;height:100%;margin:0;padding:0;"
"font-family:sans-serif;background:#ffffff;")
.with_child(title)
.with_child(column_header())
.with_child(viewport)
.with_child(status))
state = SheetState()
window = WindowCreateOptions.create(layout)
app = App.create(state, AppConfig.create())
app.run(window)

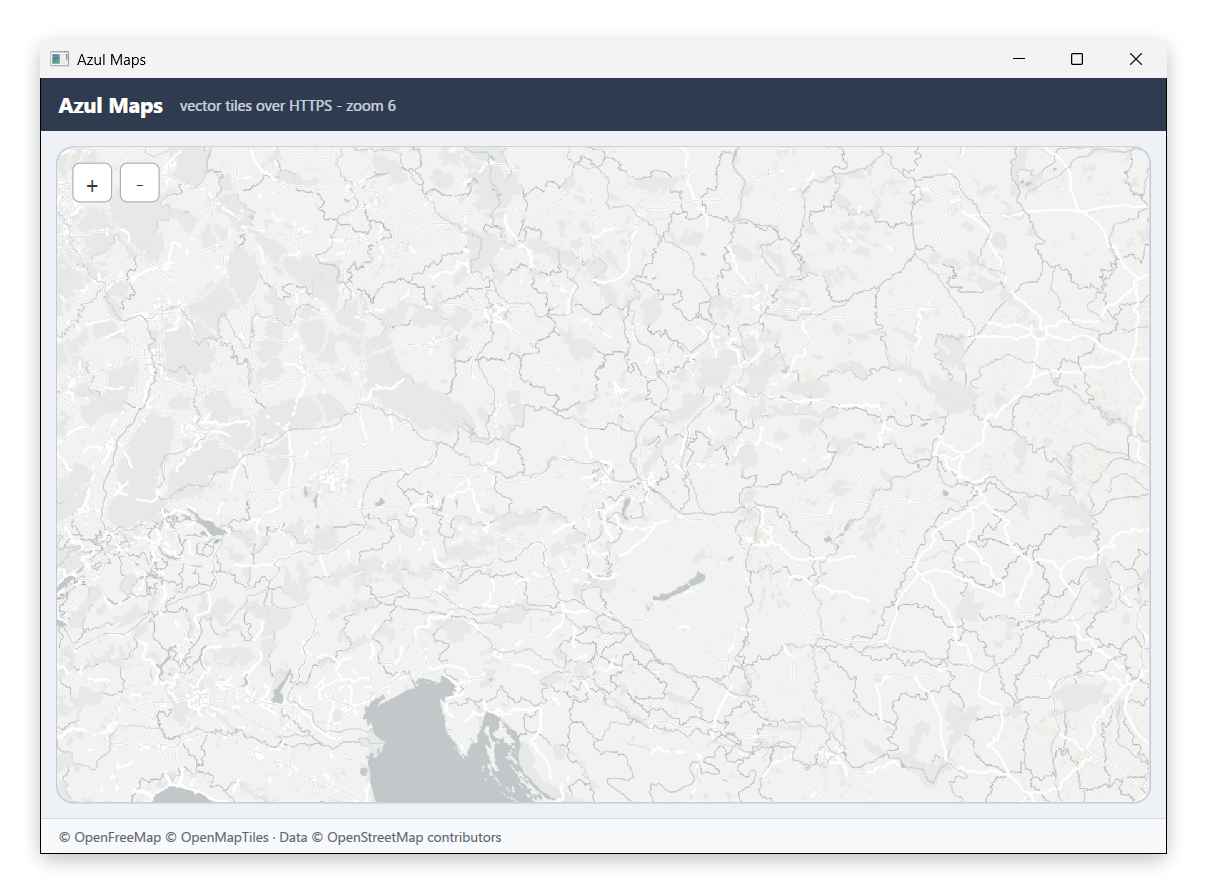

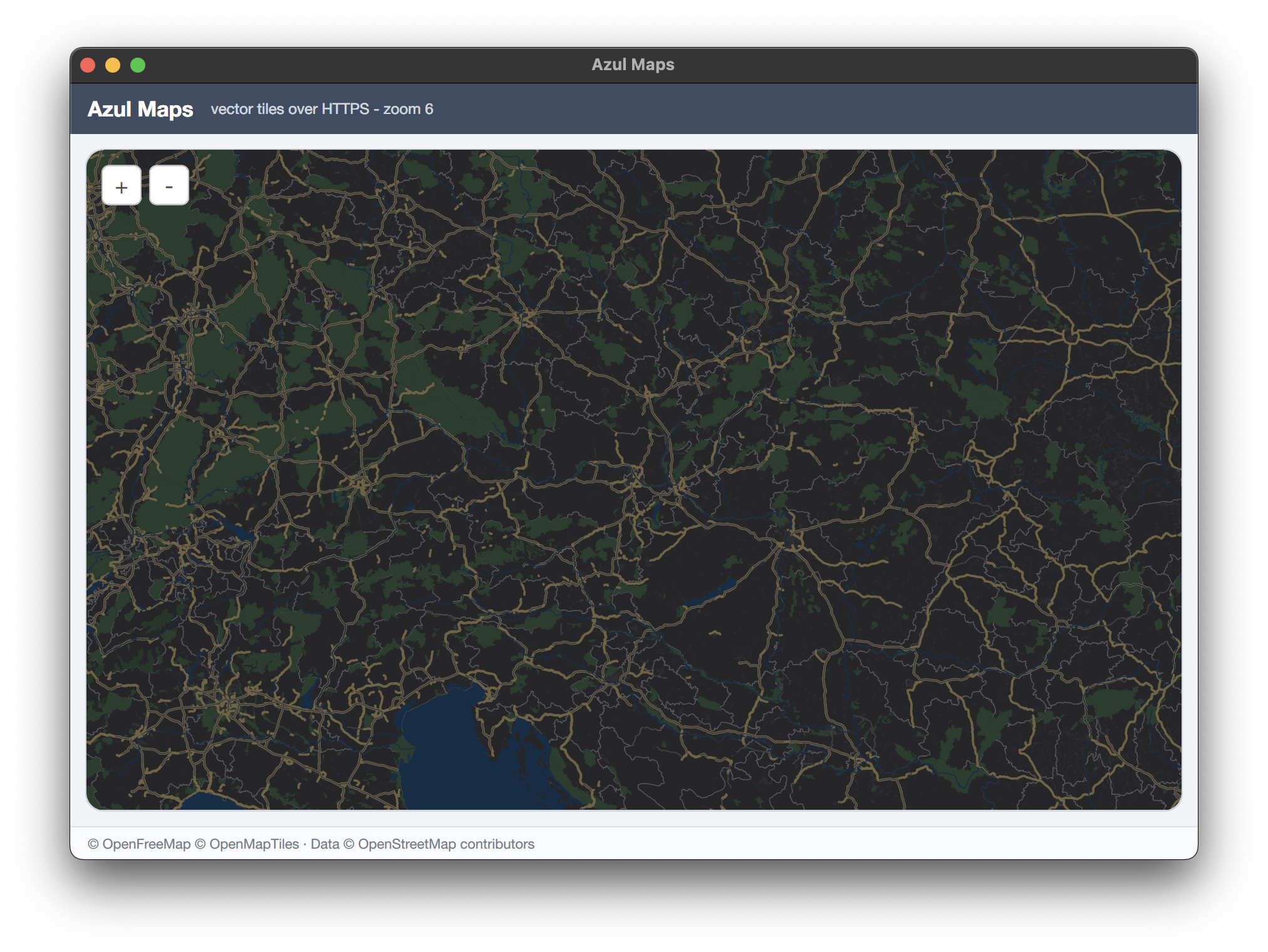

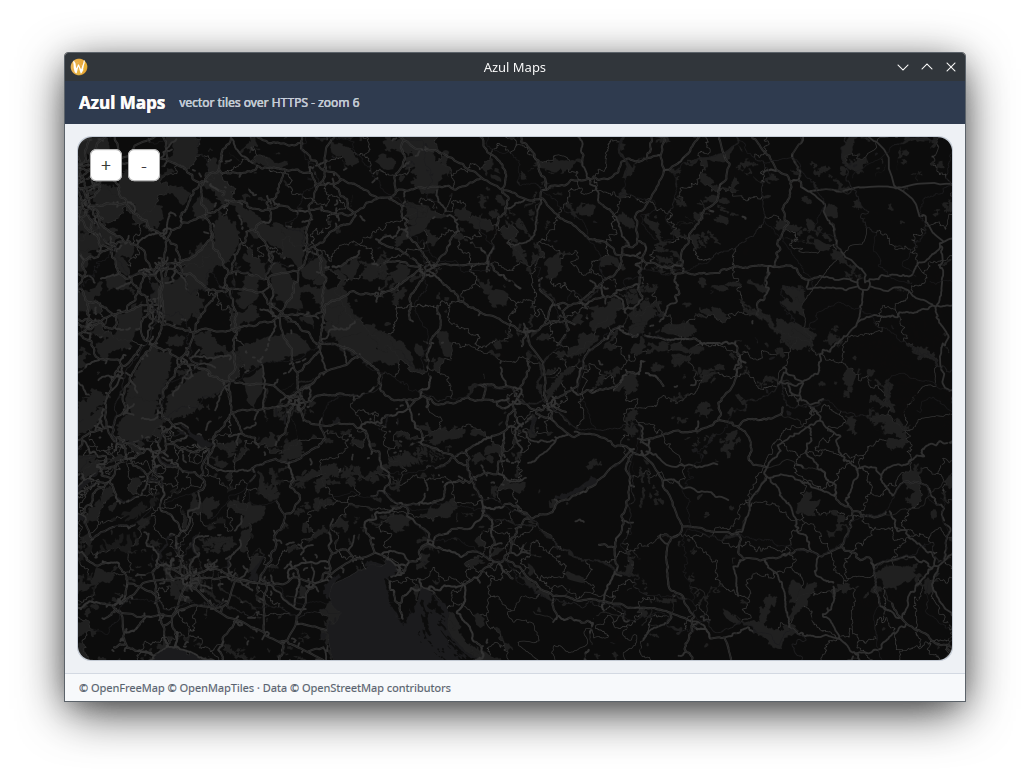

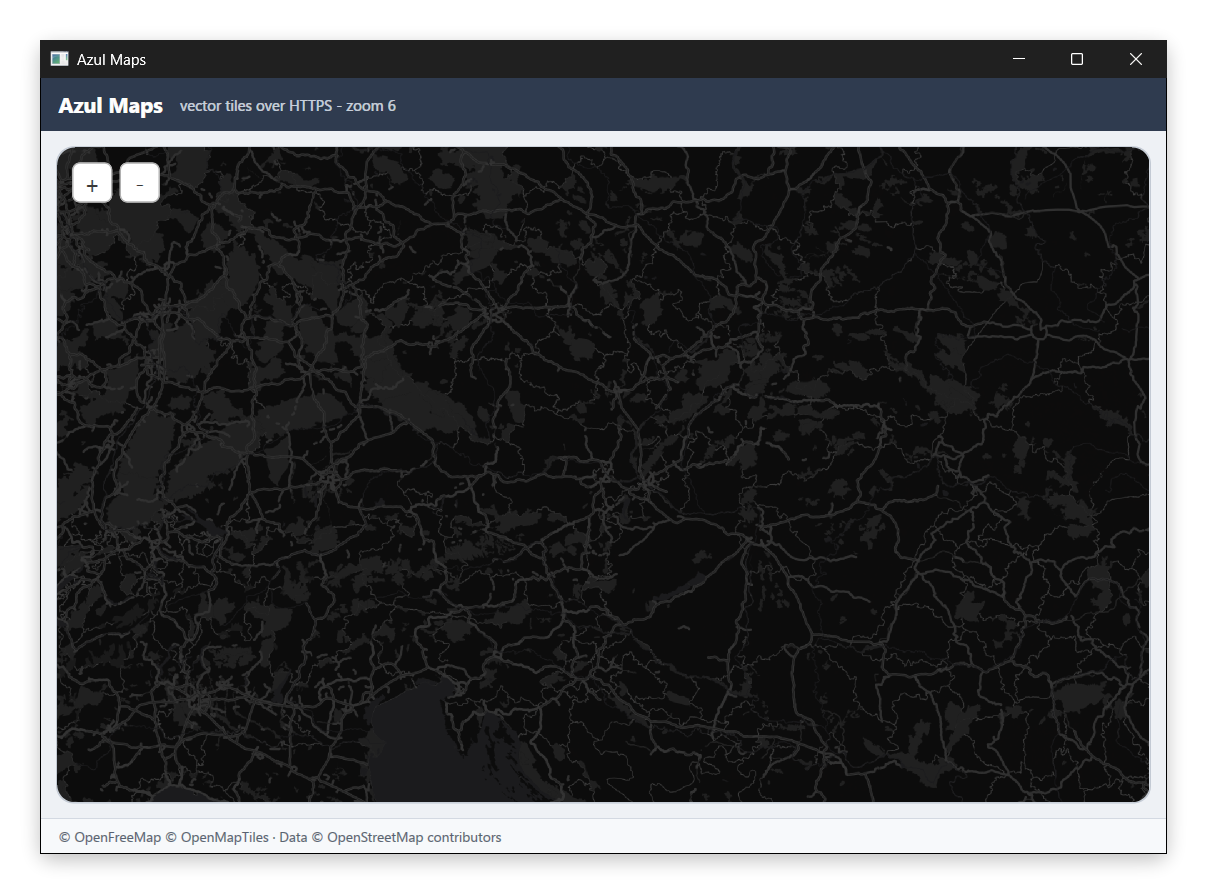

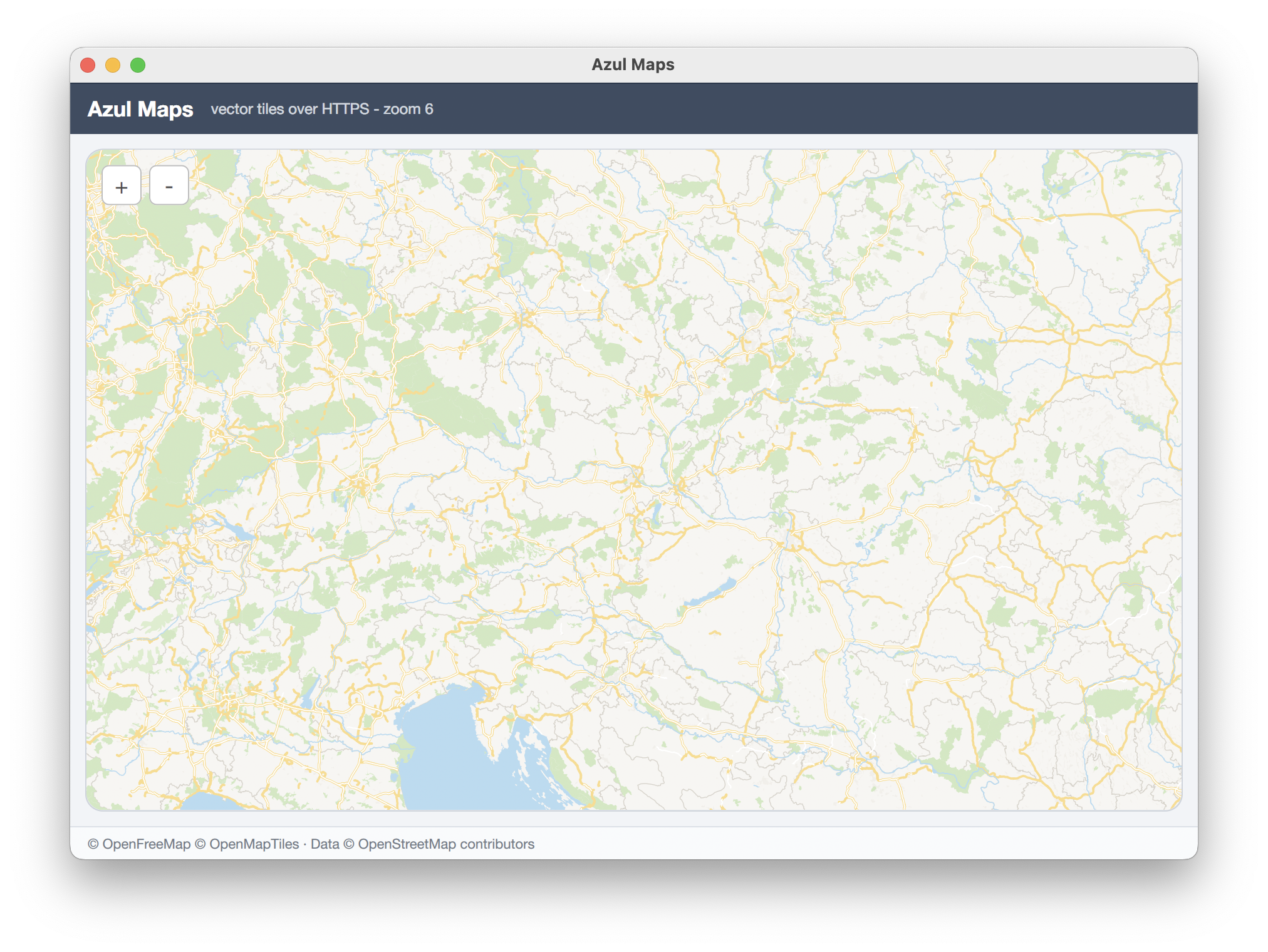

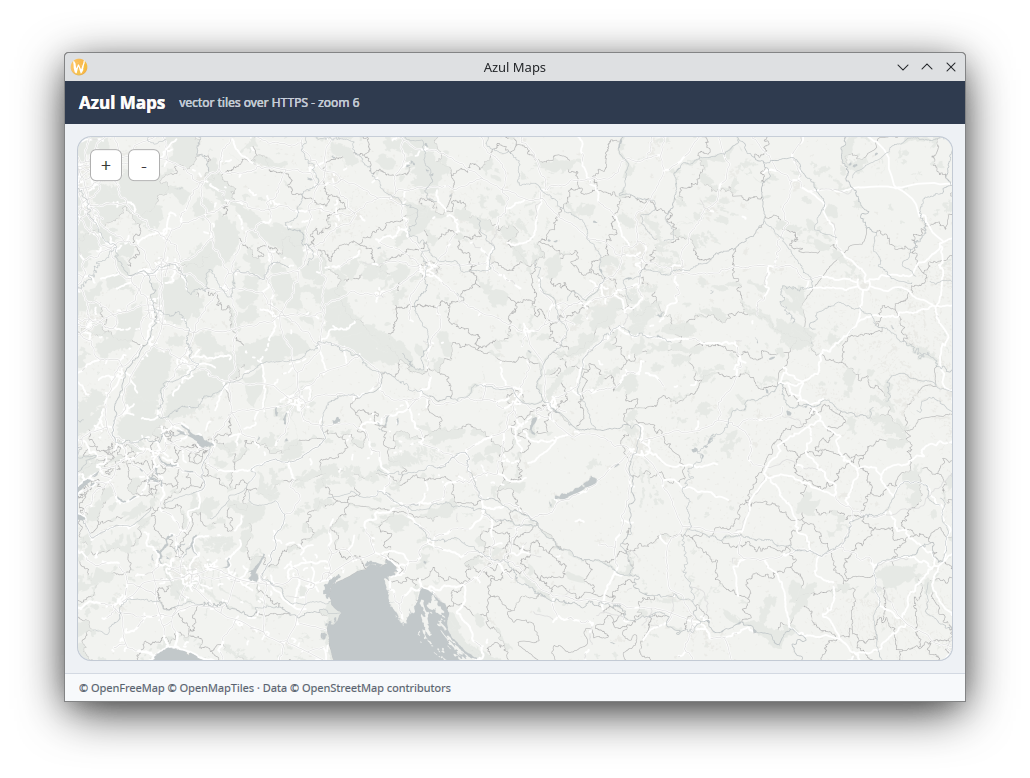

Native
Multithreading
Heavy background tasks can run on OS-native threads without blocking the main thread - Azul keeps track of threads and progress is submitted via message-passing.
from azul import *
ZOOM_BUTTON = ("width: 30px; height: 30px; line-height: 30px; text-align: center; "
"background: white; color: #333333; border: 1px solid #b0b0b0; "
"border-radius: 6px; margin-right: 6px; font-size: 18px; cursor: pointer;")
class MapState:
def __init__(self):
self.viewport = MapViewport.default()
self.viewport.centre_lat_deg = 48.2082
self.viewport.centre_lon_deg = 16.3738
self.viewport.zoom = 6.0
self.viewport.bearing_deg = 0.0
self.viewport.pitch_deg = 0.0
self.tiles = HttpClient.create(HttpClientConfig.create())
self.workers = ThreadPool.create(4)
def label(text, css):
return Dom.create_span_with_text(text).with_css(css)
def zoom_button(glyph, name, data, callback):
return (label(glyph, ZOOM_BUTTON)
.with_callback(EventFilter.Hover(HoverEventFilter.MouseUp), data, callback)
.with_accessibility_info(AccessibilityInfo.named(name, AccessibilityRole.PushButton)))
def change_zoom(data, delta):
data.viewport.zoom = max(1.0, min(14.0, data.viewport.zoom + delta))
return Update.RefreshDom
def on_zoom_in(data, info):
return change_zoom(data, 1.0)
def on_zoom_out(data, info):
return change_zoom(data, -1.0)
def on_map_mount(data, info, setup):
return (setup.with_http_client(data.tiles)
.with_thread_pool(data.workers)
.with_max_in_flight(8))
def layout(data, info):
layer = MapTileLayer.default()
credit = layer.attribution
map_dom = (MapWidget.create(layer)
.with_theme(MapTheme.System)
.with_viewport(data.viewport)
.with_on_mount(data, on_map_mount)
.dom()
.with_css("width: 100%; height: 100%;"))
header = (Dom.create_div()
.with_css("display: flex; flex-direction: row; align-items: center; "
"padding: 10px 14px; background: #2f3b4f; color: white;")
.with_child(label("Azul Maps", "font-size: 17px; font-weight: bold; margin-right: 14px;"))
.with_child(label("vector tiles over HTTPS - zoom %.0f" % data.viewport.zoom,
"font-size: 12px; color: #c7d0dc;")))
controls = (Dom.create_div()
.with_css("position: absolute; left: 12px; top: 12px; display: flex; flex-direction: row;")
.with_child(zoom_button("+", "Zoom in", data, on_zoom_in))
.with_child(zoom_button("-", "Zoom out", data, on_zoom_out)))
frame = (Dom.create_div()
.with_css("flex-grow: 1; margin: 12px; border-radius: 14px; overflow: hidden; "
"border: 1px solid #c3cad4; background: #dfe5ec; position: relative;")
.with_child(map_dom)
.with_child(controls))
footer = label(credit, "padding: 6px 14px; background: #f7f9fb; border-top: 1px solid #d3d9e2; "
"color: #55606e; font-size: 11px;")
return (Dom.create_body()
.with_css("display: flex; flex-direction: column; height: 100%; margin: 0; padding: 0; "
"background: #eef1f5; font-family: sans-serif;")
.with_child(header)
.with_child(frame)
.with_child(footer))
if __name__ == "__main__":
window = WindowCreateOptions.create(layout)
state = window.window_state
state.title = "Azul Maps"
size = state.size
dimensions = size.dimensions
dimensions.width = 900.0
dimensions.height = 620.0
size.dimensions = dimensions
state.size = size
window.window_state = state
app = App.create(MapState(), AppConfig.create())
app.run(window)

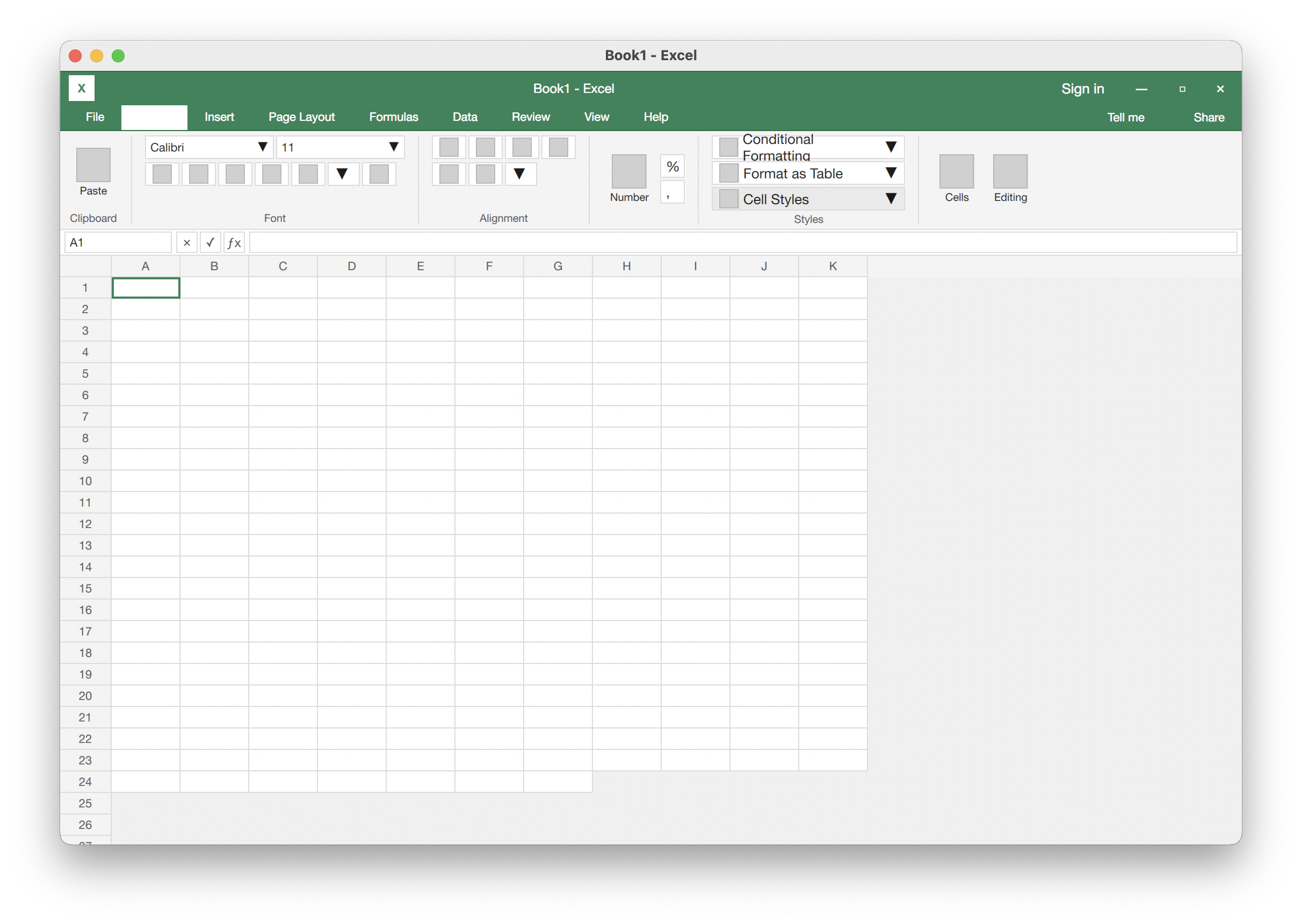

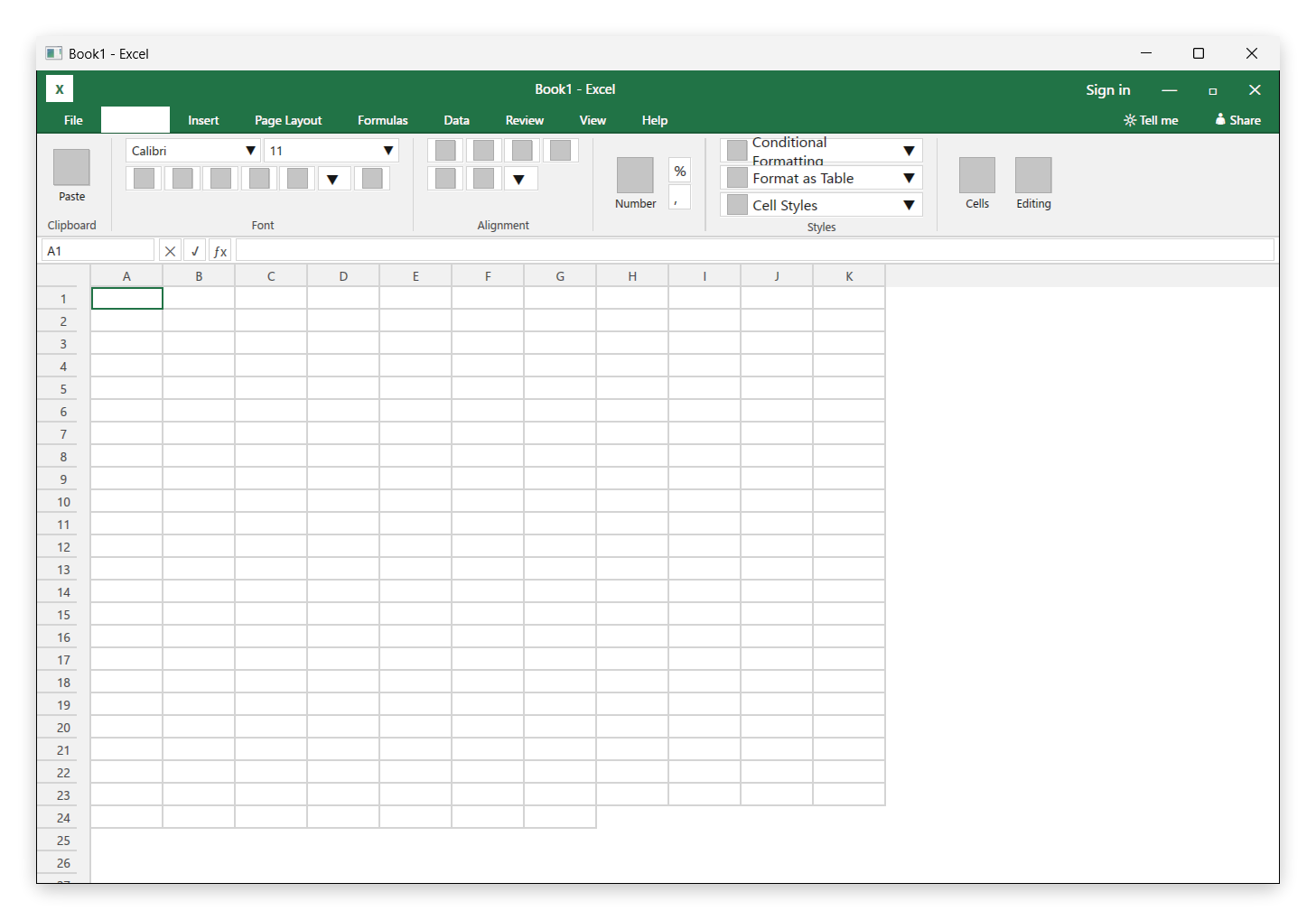

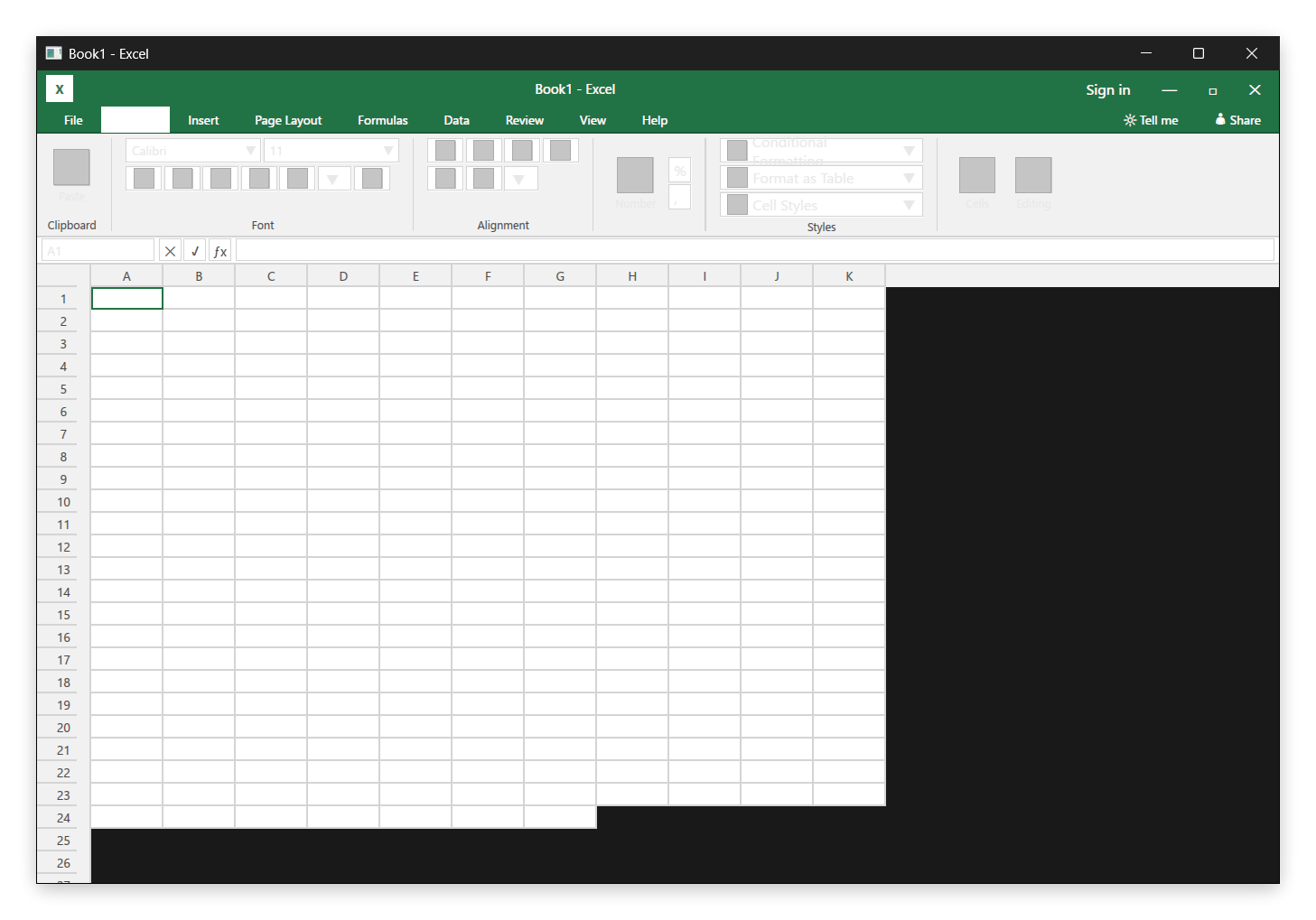

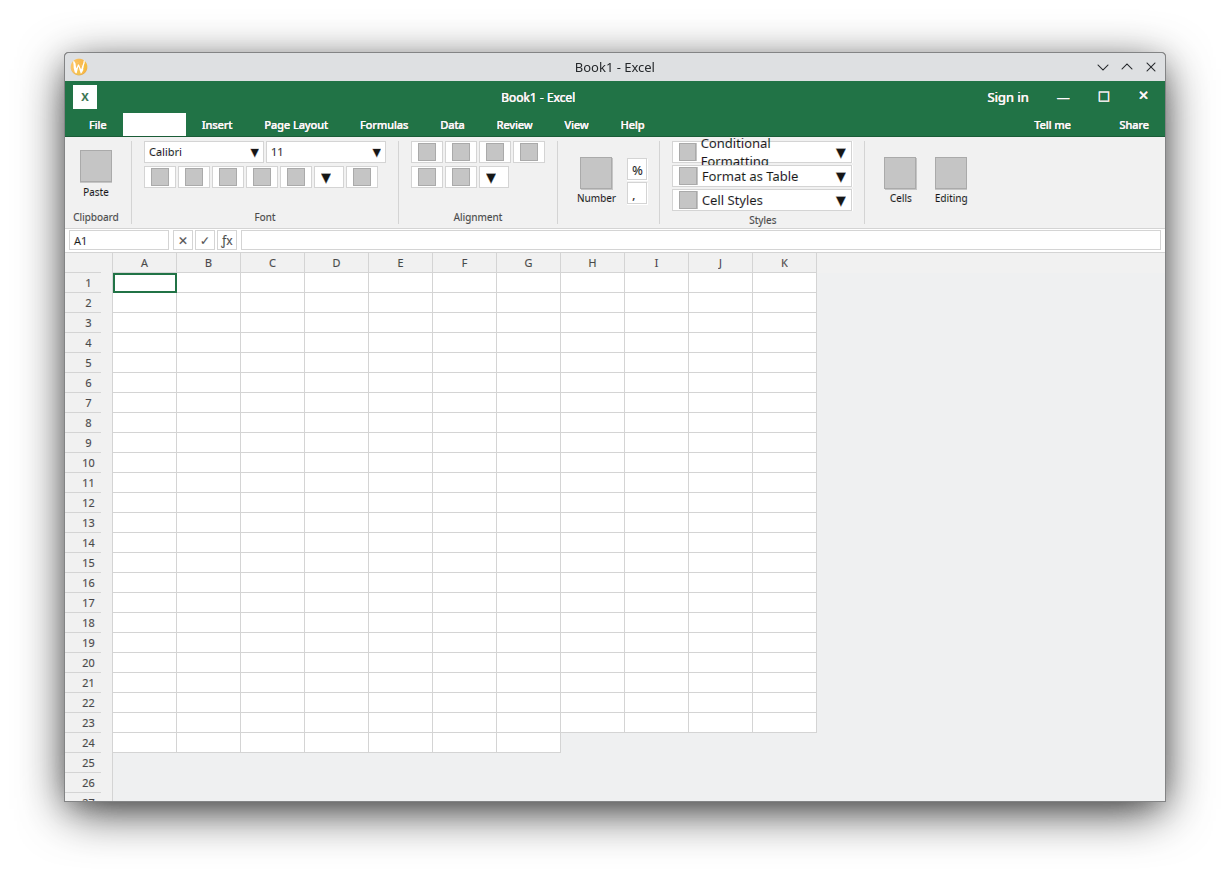

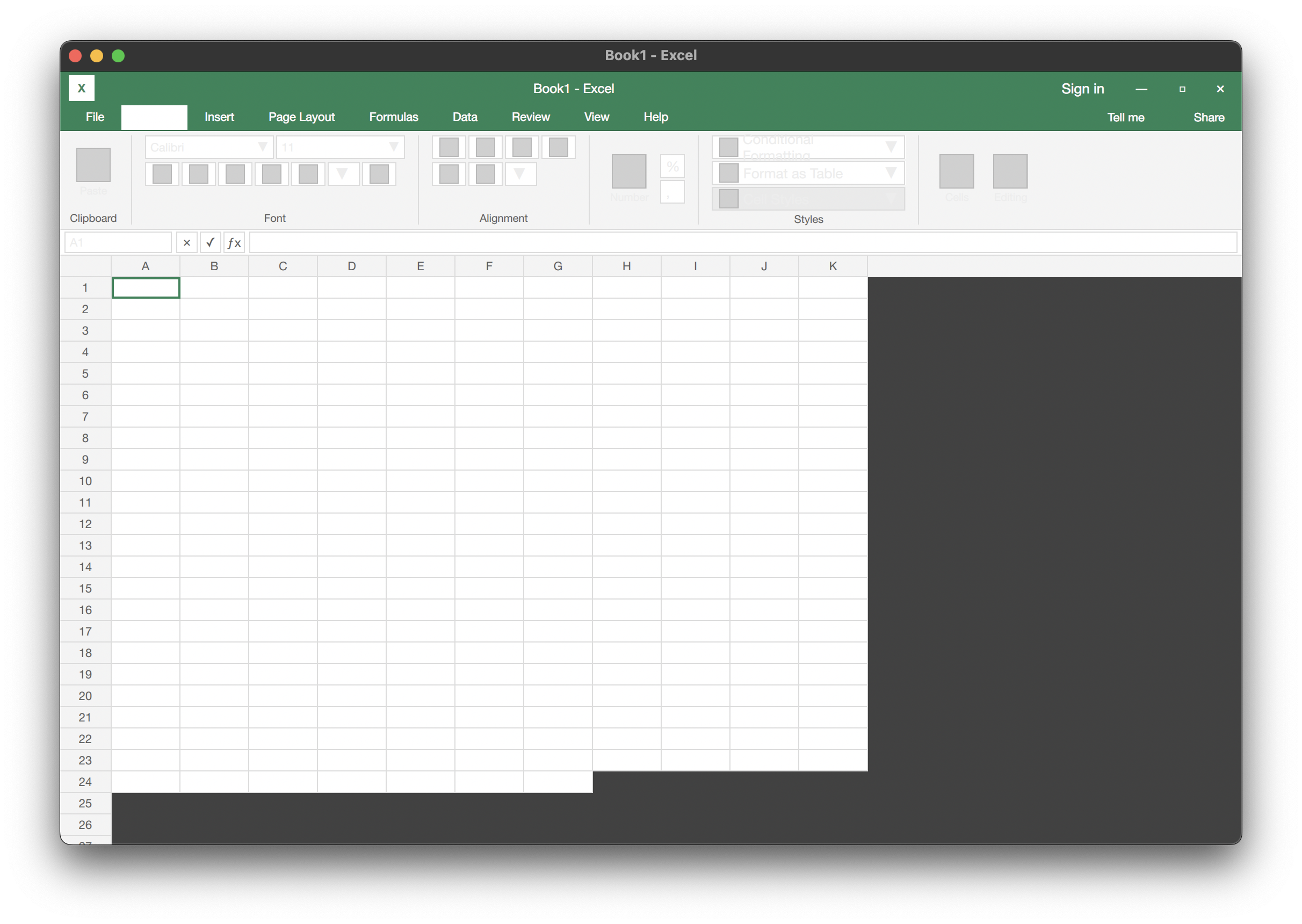

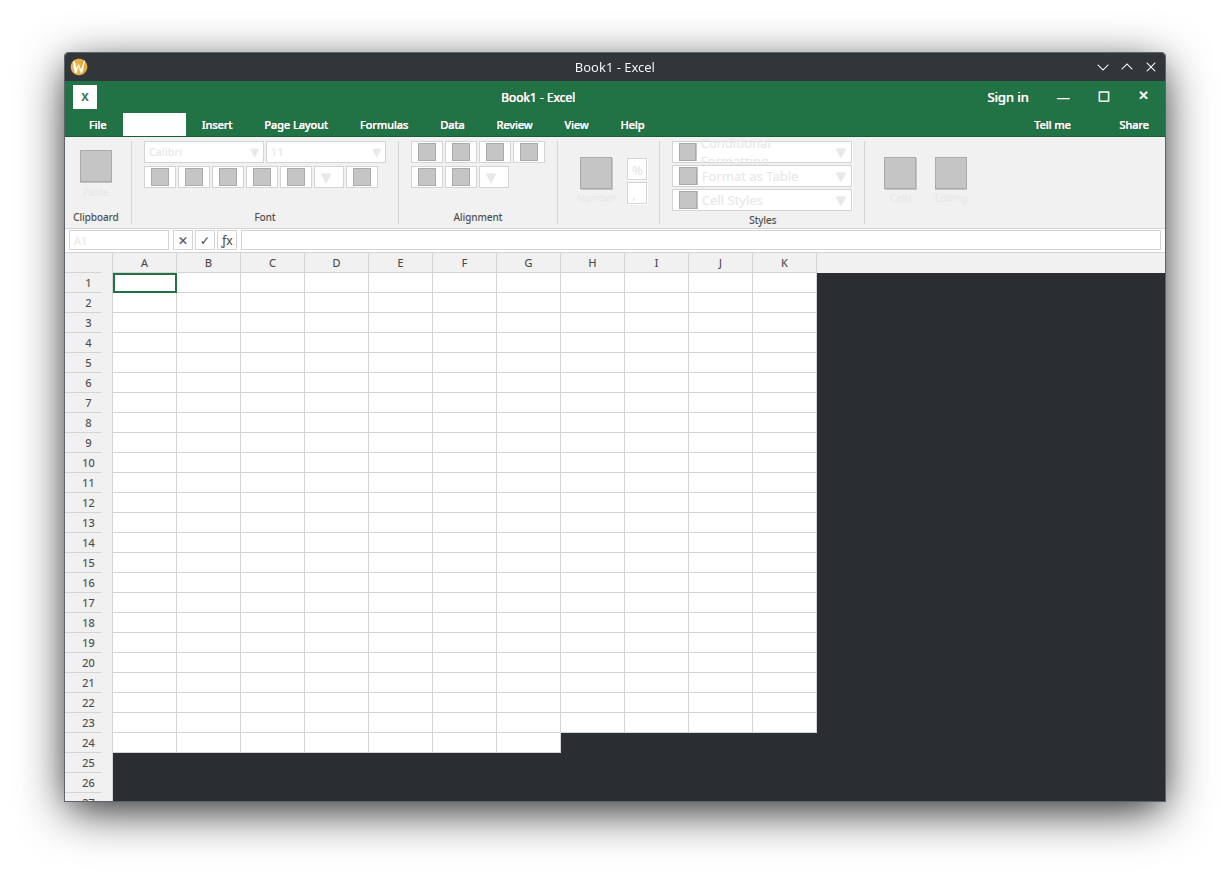

Built-in CSS
Styling Engine
Azul contains a simplified XHTML parser to load UIs from external files / tools, in addition to an end-to-end testing pipeline to make sure your UI works the way you want it to.
import os
from azul import *
DOC_PATH = os.path.join(os.path.dirname(os.path.abspath(__file__)), "..", "assets", "spreadsheet.xhtml")
def error_dom(message):
heading = (Dom.create_div()
.with_css("font-size:20px;font-weight:bold;color:#a61b1b;margin-bottom:8px;")
.with_child(Dom.create_p_with_text("XHTML load failed")))
detail = (Dom.create_div()
.with_css("font-size:13px;color:#5f2120;")
.with_child(Dom.create_p_with_text(message)))
return (Dom.create_body()
.with_css("display:flex;flex-direction:column;padding:24px;background:#fdf2f2;")
.with_child(heading)
.with_child(detail))
def layout(data, info):
try:
with open(DOC_PATH, encoding="utf-8") as handle:
src = handle.read()
except OSError as err:
return error_dom(str(err))
parsed = Xml.from_str(src)
if parsed.is_ok():
return Dom.create_from_parsed_xml(parsed.as_ok())
return error_dom(str(parsed.as_err()))
app = App.create(None, AppConfig.create())
window = WindowCreateOptions.create(layout)
app.run(window)

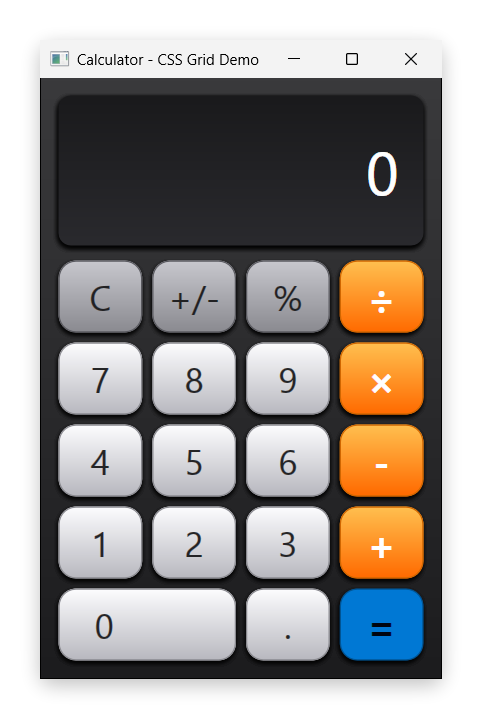

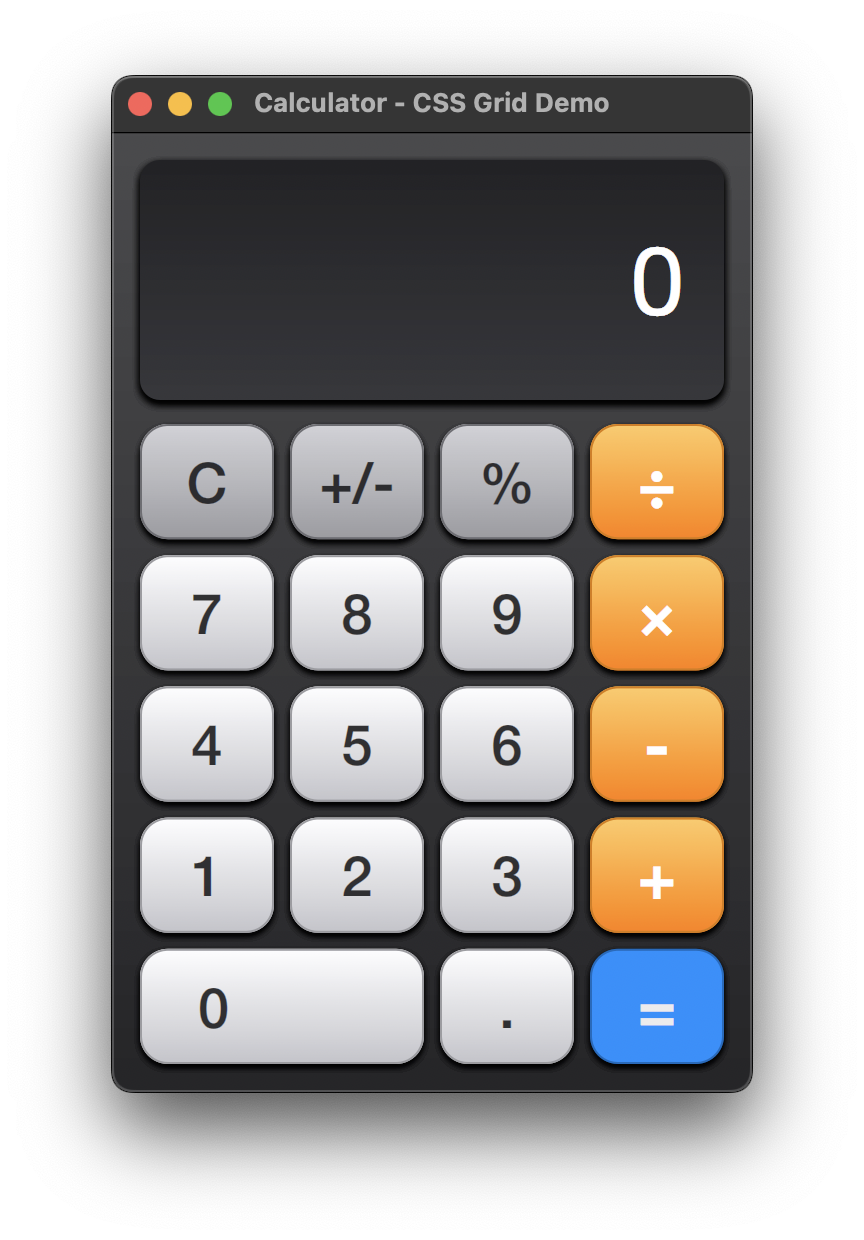

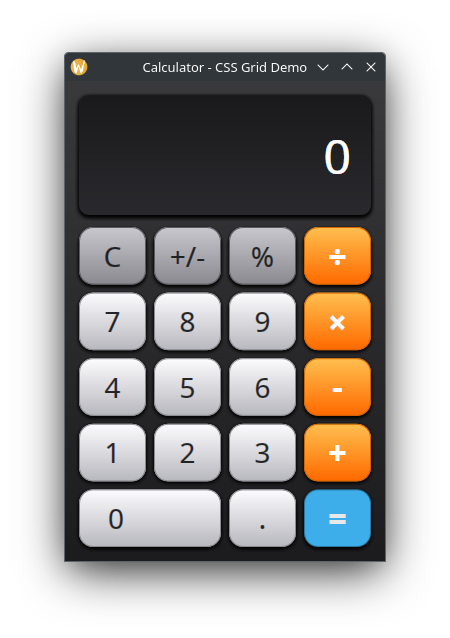

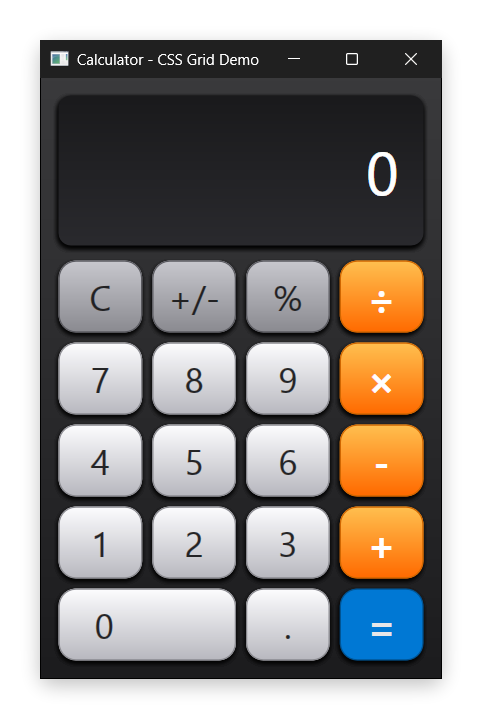

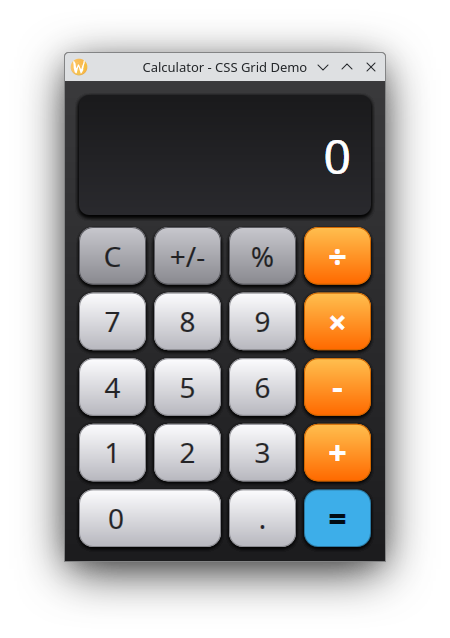

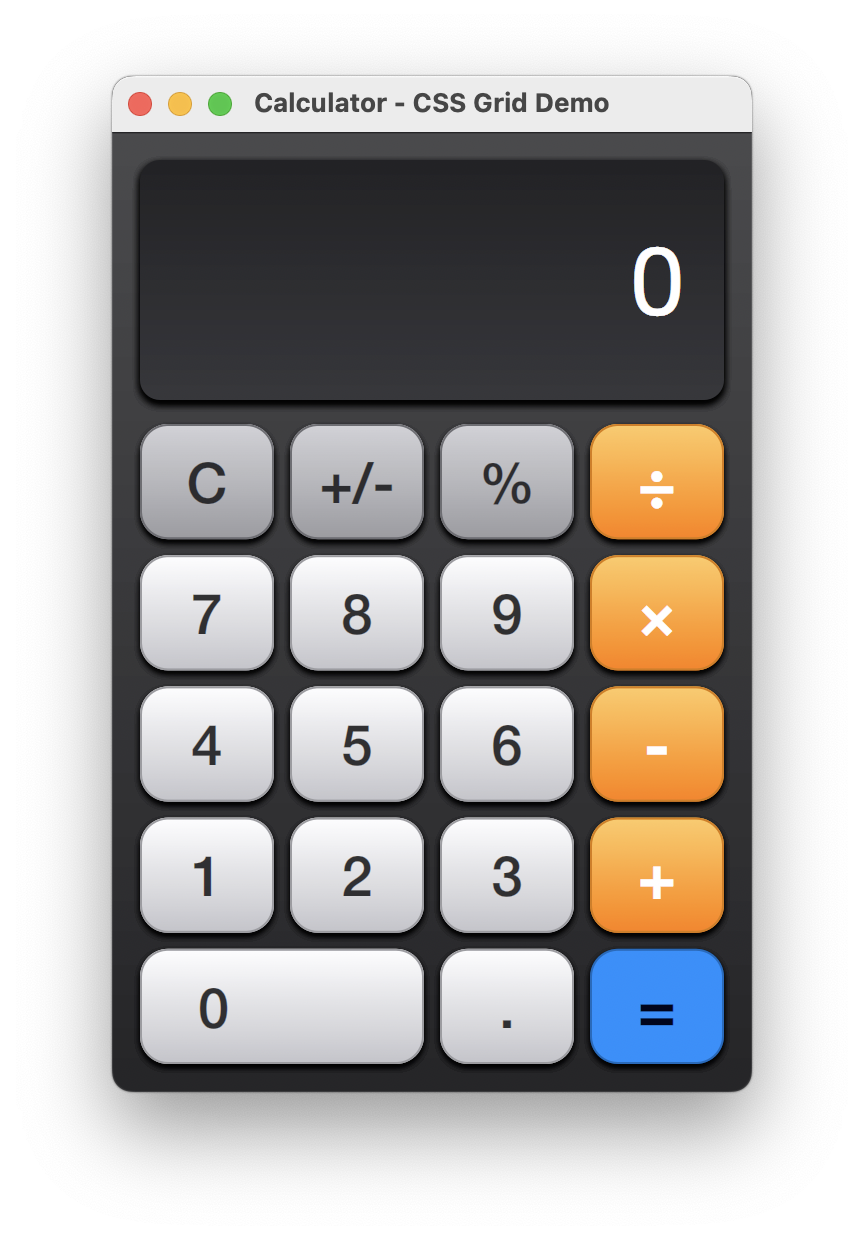

Flexbox and
Grid Layouts
Azul includes support for flex and grid layouts via the taffy engine and runs reference tests against Google Chrome to make sure the UI looks like in a browser - only without the heavy memory penalty
from azul import *
class Calculator:
def __init__(self):
self.display = "0"
self.current_value = 0.0
self.pending_operation = None
self.pending_value = None
self.clear_on_next_input = False
def input_digit(self, digit):
if self.clear_on_next_input:
self.display = ""
self.clear_on_next_input = False
if self.display == "0" and digit != ".":
self.display = digit
elif digit == "." and "." in self.display:
pass
else:
self.display += digit
self.current_value = float(self.display) if self.display else 0.0
def set_operation(self, op):
self.calculate()
self.pending_operation = op
self.pending_value = self.current_value
self.clear_on_next_input = True
def calculate(self):
if self.pending_operation is None or self.pending_value is None:
return
if self.pending_operation == "add":
result = self.pending_value + self.current_value
elif self.pending_operation == "subtract":
result = self.pending_value - self.current_value
elif self.pending_operation == "multiply":
result = self.pending_value * self.current_value
elif self.pending_operation == "divide":
if self.current_value != 0:
result = self.pending_value / self.current_value
else:
self.display = "Error"
self.pending_operation = None
self.pending_value = None
return
else:
return
self.current_value = result
if result == int(result) and abs(result) < 1e15:
self.display = str(int(result))
else:
self.display = str(result)
self.pending_operation = None
self.pending_value = None
self.clear_on_next_input = True
def clear(self):
self.display = "0"
self.current_value = 0.0
self.pending_operation = None
self.pending_value = None
self.clear_on_next_input = False
def invert_sign(self):
self.current_value = -self.current_value
self.display = (str(int(self.current_value))
if self.current_value == int(self.current_value)
else str(self.current_value))
def percent(self):
self.current_value /= 100.0
self.display = str(self.current_value)
CALC_STYLE = ("height:100%;display:flex;flex-direction:column;"
"font-family:sans-serif;")
DISPLAY_STYLE = ("background-color:#2d2d2d;color:white;font-size:48px;"
"text-align:right;padding:20px;display:flex;align-items:center;"
"justify-content:flex-end;min-height:80px;")
BUTTONS_STYLE = ("flex-grow:1;display:grid;"
"grid-template-columns:1fr 1fr 1fr 1fr;"
"grid-template-rows:1fr 1fr 1fr 1fr 1fr;gap:1px;"
"background-color:#666666;")
BTN_STYLE = ("background-color:#d1d1d6;color:#1d1d1f;font-size:24px;"
"display:flex;align-items:center;justify-content:center;")
OP_STYLE = ("background-color:#ff9f0a;color:white;font-size:24px;"
"display:flex;align-items:center;justify-content:center;")
ZERO_STYLE = ("background-color:#d1d1d6;color:#1d1d1f;font-size:24px;"
"display:flex;align-items:center;justify-content:flex-start;"
"padding-left:28px;grid-column:span 2;")
def make_callback(calc, event_type, event_data):
def cb(data, info):
if event_type == "digit":
calc.input_digit(event_data)
elif event_type == "operation":
calc.set_operation(event_data)
elif event_type == "equals":
calc.calculate()
elif event_type == "clear":
calc.clear()
elif event_type == "invert":
calc.invert_sign()
elif event_type == "percent":
calc.percent()
return Update.RefreshDom
return cb
def button(calc, label, event_type, event_data, style):
return (Dom.create_div()
.with_css(style)
.with_child(Dom.create_p_with_text(label))
.with_callback(
EventFilter.Hover(HoverEventFilter.MouseUp),
calc,
make_callback(calc, event_type, event_data)))
def layout(data, info):
display = (Dom.create_div()
.with_css(DISPLAY_STYLE)
.with_child(Dom.create_p_with_text(data.display)))
rows = [
("C", "clear", None, BTN_STYLE),
("+/-", "invert", None, BTN_STYLE),
("%", "percent", None, BTN_STYLE),
("÷", "operation", "divide", OP_STYLE),
("7", "digit", "7", BTN_STYLE),
("8", "digit", "8", BTN_STYLE),
("9", "digit", "9", BTN_STYLE),
("×", "operation", "multiply", OP_STYLE),
("4", "digit", "4", BTN_STYLE),
("5", "digit", "5", BTN_STYLE),
("6", "digit", "6", BTN_STYLE),
("-", "operation", "subtract", OP_STYLE),
("1", "digit", "1", BTN_STYLE),
("2", "digit", "2", BTN_STYLE),
("3", "digit", "3", BTN_STYLE),
("+", "operation", "add", OP_STYLE),
("0", "digit", "0", ZERO_STYLE),
(".", "digit", ".", BTN_STYLE),
("=", "equals", None, OP_STYLE),
]
buttons = Dom.create_div().with_css(BUTTONS_STYLE)
for label, evt, evt_data, style in rows:
buttons = buttons.with_child(button(data, label, evt, evt_data, style))
body = (Dom.create_div()
.with_css(CALC_STYLE)
.with_child(display)
.with_child(buttons))
return body
def main():
calc = Calculator()
app = App.create(calc, AppConfig.create())
window = WindowCreateOptions.create(layout)
app.run(window)
if __name__ == "__main__":
main()
