Styling Text

Overview

WIP. Font fallback and the text shaper are stable; some advanced typography (font-feature-settings, variable axes) is not yet wired through from CSS to the layout engine. The properties below all parse and apply.

Text rendering is driven by four font properties (font-family, font-size, font-weight, font-style) and modulated by alignment, justification, and line metrics.

font-family

StyleFontFamily is one of:

  • System(name). CSS like "Arial" or Times New Roman. Resolves to a face matching the family name.
  • SystemType(SystemFontType). CSS like system:ui or system:monospace:bold. Resolves to a platform UI font.
  • File(url). CSS like url(/fonts/Inter.ttf). Resolves to a font file loaded from the URL.
  • Ref(FontRef). Not addressable from CSS. Resolves to a pre-loaded font handle.

The property takes a comma-separated fallback list. Each entry is tried in order; the first one that resolves to a face containing the requested glyph wins.

body { font-family: "Inter", system:ui, sans-serif; }
code { font-family: system:monospace, "SF Mono", Menlo, monospace; }

system: fonts

The system:<role>[:<variant>] prefix selects a platform UI font without hard-coding a family name. It resolves to the OS's preferred face for that role:

  • system:ui. The default UI font.
  • system:ui:bold. The UI bold variant.
  • system:monospace, system:monospace:bold, system:monospace:italic. Platform monospace.
  • system:title, system:title:bold. Larger UI text.
  • system:menu. Menu and menu-item label font.
  • system:small. Small-print UI font.
  • system:serif, system:serif:bold. Platform serif.

If the role isn't recognised, the parser keeps the literal string as a System family (so system:invalid becomes the family named "system:invalid").

FontRef and pre-loaded fonts

FontRef is a reference-counted handle that points at parsed font data. You won't construct FontRef from CSS, but you'll see it on the Rust side when binding a font once and using it across multiple DOMs.

font-size

StyleFontSize wraps a PixelValue. The default is 12pt. Pick whatever your design system needs:

h1 { font-size: 28px; }
p  { font-size: 1em; }
small { font-size: 80%; }

em is relative to the parent's font-size. rem is relative to the root. % resolves the same way as em.

font-weight

StyleFontWeight:

  • lighter. Lighter than parent.
  • 100 ... 300. Maps to W100 ... W300.
  • normal, 400. Maps to Normal.
  • 500, 600. Maps to W500, W600.
  • bold, 700. Maps to Bold.
  • 800, 900. Maps to W800, W900.
  • bolder. Heavier than parent.

The numeric scale is the OpenType weight class. The parser maps standard numbers to enum variants. 450 and other in-between numbers are not accepted; use the named variant for the closest weight.

font-style

StyleFontStyle:

StyleFontStyle::Normal   // upright (default)
StyleFontStyle::Italic   // italic face
StyleFontStyle::Oblique  // oblique (synthesised slant if no italic face)

text-align

Horizontal alignment of inline content within its line box:

  • start (default). Left in LTR, right in RTL.
  • end. Right in LTR, left in RTL.
  • left / right. Absolute, ignoring text direction.
  • center. Centred.
  • justify. Spread to fill the line. See text-justify below.

text-justify

LayoutTextJustify refines what text-align: justify does:

  • auto (default). UA picks the appropriate algorithm for the script.
  • none. No justification (text-align: justify is treated as start).
  • inter-word. Distributes whitespace only between words.
  • inter-character. Distributes whitespace between every character (CJK-friendly).
  • distribute. Legacy alias of inter-character.

The legacy distribute value computes to inter-character per the spec.

Line metrics

  • line-height accepts <percentage>. Default 120%. Multiplier applied to font-size.
  • letter-spacing accepts <length>. Default 0px. Added between every glyph.
  • word-spacing accepts <length>. Default 0px. Added between words.
  • tab-size accepts <length>. Default 8em. Width of a tab character.
.body { line-height: 150%; letter-spacing: 0.02em; }
pre   { tab-size: 4em; }

Wrapping and breaks

white-space controls collapsing and wrapping:

  • normal (default). Collapses whitespace and wraps.
  • pre. Preserves whitespace. No wrap (only at explicit breaks).
  • nowrap. Collapses whitespace. No wrap.
  • pre-wrap. Preserves whitespace and wraps.
  • pre-line. Collapses whitespace but preserves newlines. Wraps.
  • break-spaces. Preserves whitespace and breaks at every space. Wraps.

word-break and overflow-wrap decide what to do with long unbreakable sequences (URLs, code, CJK):

StyleWordBreak::Normal      // default
StyleWordBreak::BreakAll    // allow break between any two characters
StyleWordBreak::KeepAll     // forbid break inside CJK
StyleWordBreak::BreakWord   // deprecated alias

StyleOverflowWrap::Normal   // only at allowed break points
StyleOverflowWrap::Anywhere // break anywhere to prevent overflow
StyleOverflowWrap::BreakWord

hyphens: none | manual | auto enables soft-hyphen breaking. auto requires the layout crate's hyphenation resources for the active language.

Direction and writing mode

For bidirectional text:

StyleDirection::Ltr   // left-to-right (default)
StyleDirection::Rtl   // right-to-left

StyleUnicodeBidi      // bidi-override embedding for the inline element

For vertical scripts, set writing-mode on the block container. See Inline and Text Flow for the values.

Text decoration and selection

  • text-decoration accepts none, underline, overline, or line-through.
  • user-select accepts auto, text, none, or all.
  • vertical-align accepts baseline, top, middle, bottom, sub, super, text-top, text-bottom, <percentage>, or <length>.

user-select: none is what you want on buttons and icon glyphs to prevent double-click text selection from overlapping the click.

Recipes

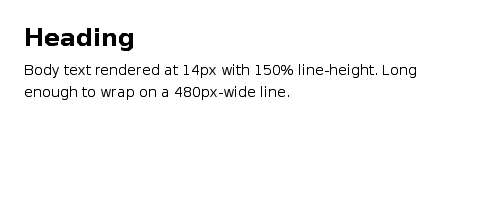

Heading and body

A heading and paragraph using system fonts

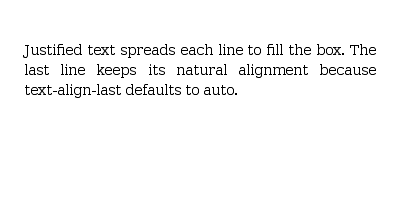

Justified paragraph

text-align: justify with default text-justify: auto

Mixed weights

lighter / normal / bold weights side by side

Default values at a glance

  • font-family. Default serif (platform default).
  • font-size. Default 12pt.
  • font-weight. Default normal (400).
  • font-style. Default normal.
  • line-height. Default 120%.
  • letter-spacing. Default 0px.
  • word-spacing. Default 0px.
  • tab-size. Default 8em.
  • text-align. Default start.
  • text-justify. Default auto.
  • white-space. Default normal.
  • word-break. Default normal.
  • overflow-wrap. Default normal.
  • hyphens. Default manual.
  • direction. Default ltr.
  • text-decoration. Default none.
  • user-select. Default auto.
  • vertical-align. Default baseline.
